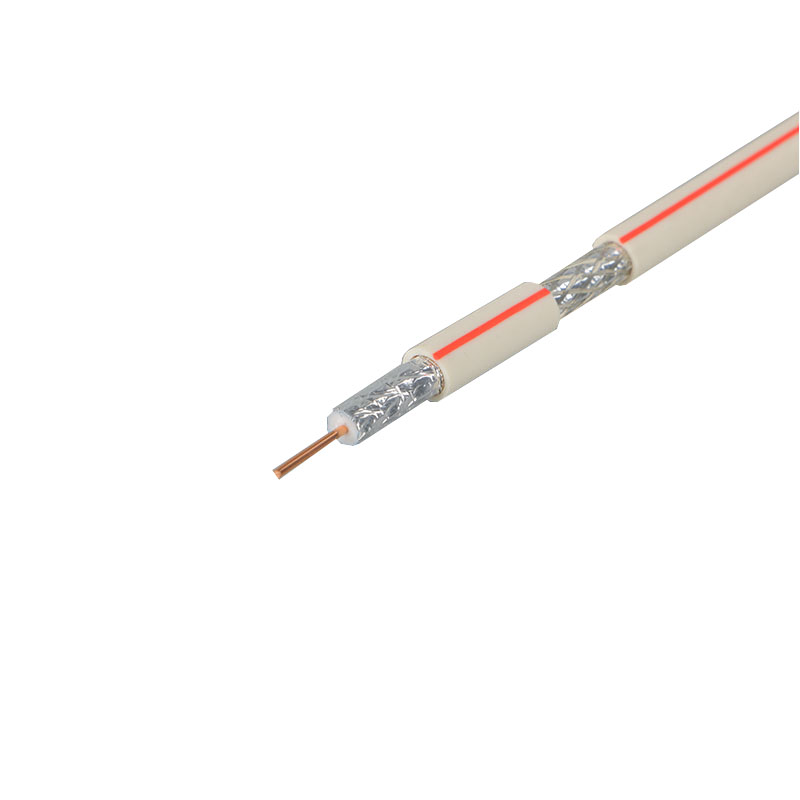

17VATC
1.13mmCCS or Copper,4.80mm Foam PE,Aluminum Foil(Bonded or not Bonded), Aluminum Braid (40-90%),6.80mm PVC.
DIELECTRIC:
GAS EXPANDED POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 4.80 ± 0.05mm
SHIELD:
1st SHIELD: ALUMINUM FOIL
NON-BONDED/BONDED
2nd SHIELD: ALUMINUM BRAID WIRE
40%-90% COVERAGE
JACKET:
PVC/PE JACKET
NOMINAL DIAMETER OVER JACKET: 6.80 ± 0.05 mm
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 ± 3.0 Ohms
CAPACITANCE:53 ± 2(pF/m)
VELOCITY OF PROPAGATION: 85.0% NOMINAL
CONDUCTOR RESISTANCE MAX:
INNER: 16.8 OHMS/KM;
OUTER:20.0 OHMS/KM
RETURN LOSS: 20dB MIN (5-2150MHZ)
ATTENUATION @ 68°F (20°C):
@ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5 MHz | 0.46 dB | 1.50 dB |
47 MHz | 1.31 dB | 4.30 dB |
100 MHz | 1.68 dB | 5.50 dB |
230 MHz | 2.56 dB | 8.40 dB |
300 MHz | 2.96 dB | 9.70 dB |
400 MHz | 3.45 dB | 11.30 dB |
800 MHz | 5.03 dB | 16.50 dB |
860 MHz | 5.31 dB | 17.40 dB |
1000 MHz | 5.80 dB | 19.00 dB |
1350 MHz | 6.86 dB | 22.50 dB |
1750 MHz | 7.87 dB | 25.80 dB |
2050 MHz | 8.66 dB | 28.40 dB |
2150 MHz | 8.85 dB | 29.00 dB |
DIELECTRIC:
GAS EXPANDED POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 4.80 ± 0.05mm
SHIELD:
1st SHIELD: ALUMINUM FOIL
NON-BONDED/BONDED
2nd SHIELD: ALUMINUM BRAID WIRE
40%-90% COVERAGE
JACKET:
PVC/PE JACKET
NOMINAL DIAMETER OVER JACKET: 6.80 ± 0.05 mm
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 ± 3.0 Ohms
CAPACITANCE:53 ± 2(pF/m)
VELOCITY OF PROPAGATION: 85.0% NOMINAL
CONDUCTOR RESISTANCE MAX:
INNER: 16.8 OHMS/KM;
OUTER:20.0 OHMS/KM
RETURN LOSS: 20dB MIN (5-2150MHZ)
ATTENUATION @ 68°F (20°C):
@ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5 MHz | 0.46 dB | 1.50 dB |
47 MHz | 1.31 dB | 4.30 dB |
100 MHz | 1.68 dB | 5.50 dB |
230 MHz | 2.56 dB | 8.40 dB |
300 MHz | 2.96 dB | 9.70 dB |
400 MHz | 3.45 dB | 11.30 dB |
800 MHz | 5.03 dB | 16.50 dB |
860 MHz | 5.31 dB | 17.40 dB |
1000 MHz | 5.80 dB | 19.00 dB |
1350 MHz | 6.86 dB | 22.50 dB |
1750 MHz | 7.87 dB | 25.80 dB |
2050 MHz | 8.66 dB | 28.40 dB |
2150 MHz | 8.85 dB | 29.00 dB |
