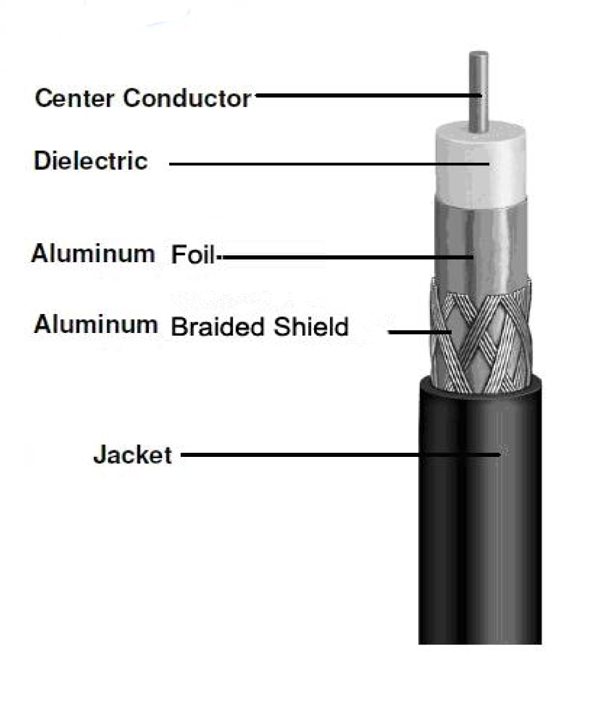

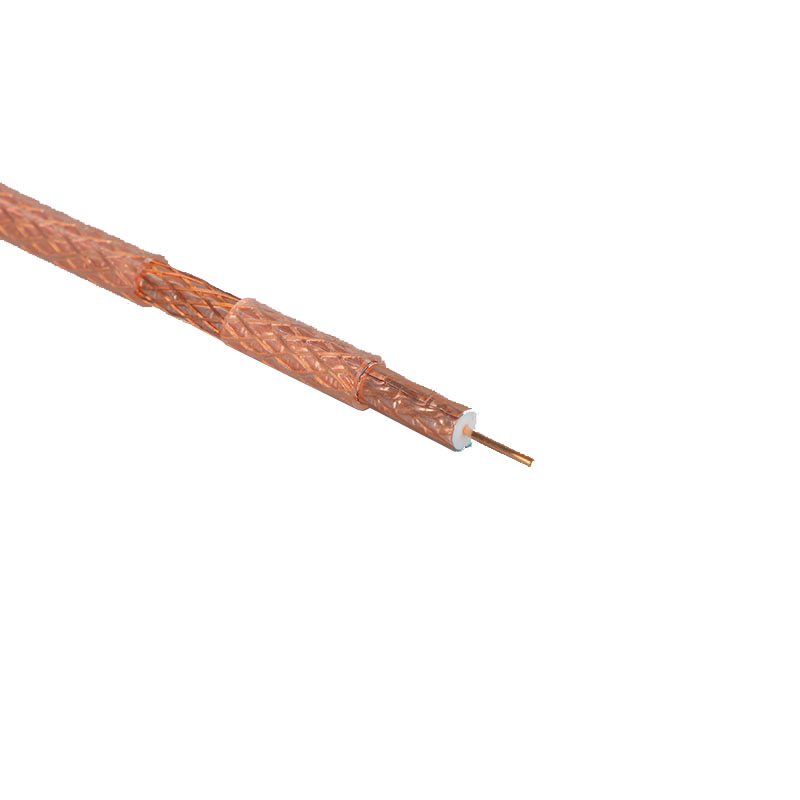

CENTER CONDUCTOR: 0.5 ± 0.01 MM BARE COPPER OR COPPER CLAD STEEL
DIELECTRIC:
GAS EXPANDED POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 3.00 ± 0.05MM
SHIELD:
1st SHIELD: ALUMINUM FOIL
NON-BONDED/BONDED
2nd SHIELD:BARE ALUMINUM BRAID WIRE
40%-90% COVERAGE
JACKET:
PVC JACKET
NOMINAL DIAMETER OVER JACKET: 5.0 ± 0. 1 mm
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 ± 3.0 Ohms
CAPACITANCE:72± 2(pF/m)
VELOCITY OF PROPAGATION: 85.0% NOMINAL
RETURN LOSS:20dB min (5-200MHz)
ATTENUATION @ 68°F (20°C):
Attenuation | [@68o F. (20o C.)] | |
Frequency (MHz) | Maximum (dB/ 100 ft.) | Maximum (dB/ 100 m) |
50 | 2.7 | 8.9 |
200 | 3.8 | 12 .5 |
500 | 5.9 | 19 .2 |
800 | 7.9 | 26..0 |
1000 | 9.3 | 30 .5 |
