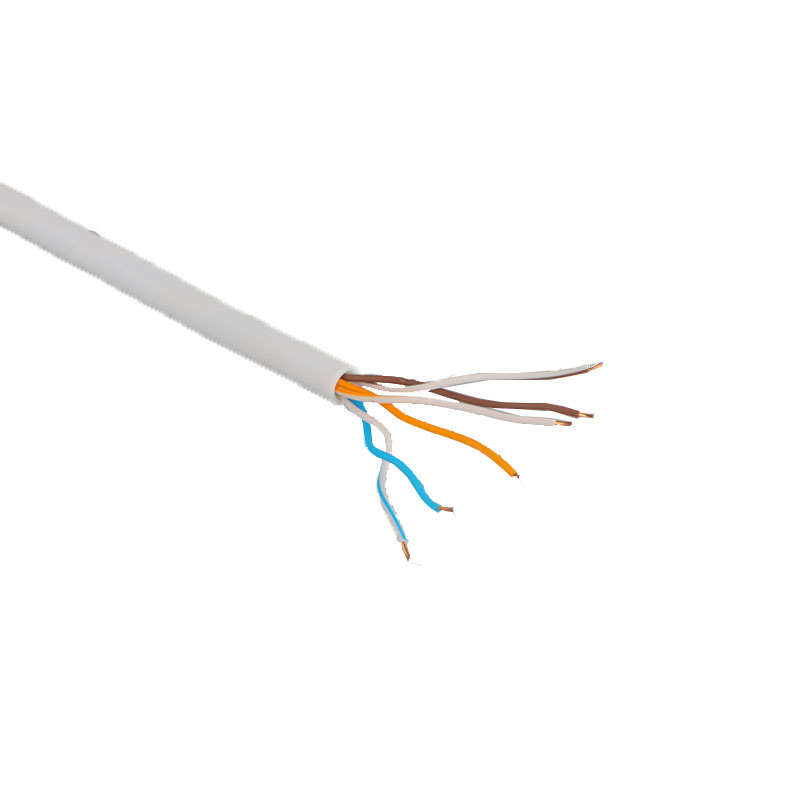

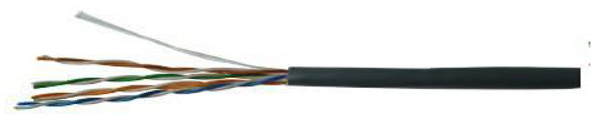

CONSTRUCTION：
CENTER CONDUCTOR: 0.51 MM COPER
DIELECTRIC: 0.91 MM COLOUR-CODED PE INSULATION
JACKET: 70-DEGREE FLAME-RETARDANT PVC JACKET
OUTSIDE DIAMETER: 5.1 MM
SHEATH THICKNESS: 0.55 MM
CHARACTERISTICS:
TEMPERATURE RATING: -20℃ to 60℃
VELOCITY OF PROPAGATION: 65%
CHARACTERISTICS IMPEDANCE:100 ± 15Ω
OTHER ELECTRIC PERFORMANCE
| Frequenc(MHz) | RL(dB) | Attenuation(dB/100m) | NEXT(dB) | NEXT PS(dB) | ELFEXT(dB) |
| 1 | 20.0 | 2.0 | 65.3 | 62.3 | 63.8 |
| 4 | 23.0 | 4.1 | 56.3 | 53.3 | 51.7 |
| 8 | 24.5 | 5.8 | 51.8 | 48.8 | 45.7 |
| 10 | 25.0 | 6.5 | 50.3 | 47.3 | 43.8 |
| 16 | 25.0 | 8.2 | 47.3 | 44.3 | 39.7 |
| 20 | 25.0 | 9.3 | 45.8 | 42.8 | 37.7 |
| 25 | 24.3 | 10.4 | 44.3 | 41.3 | 35.8 |
| 31.25 | 23.6 | 11.7 | 42.9 | 39.9 | 33.9 |
| 62.5 | 21.5 | 17 | 38.4 | 35.4 | 27.8 |
| 100 | 20.1 | 22.0 | 35.3 | 32.3 | 23.8 |
CONSTRUCTION：
CENTER CONDUCTOR: 0.51 MM COPER
DIELECTRIC: 0.91 MM COLOUR-CODED PE INSULATION
JACKET: 70-DEGREE FLAME-RETARDANT PVC JACKET
OUTSIDE DIAMETER: 5.1 MM
SHEATH THICKNESS: 0.55 MM
CHARACTERISTICS:
TEMPERATURE RATING: -20℃ to 60℃
VELOCITY OF PROPAGATION: 65%
CHARACTERISTICS IMPEDANCE:100 ± 15Ω
OTHER ELECTRIC PERFORMANCE
| Frequenc(MHz) | RL(dB) | Attenuation(dB/100m) | NEXT(dB) | NEXT PS(dB) | ELFEXT(dB) |
| 1 | 20.0 | 2.0 | 65.3 | 62.3 | 63.8 |
| 4 | 23.0 | 4.1 | 56.3 | 53.3 | 51.7 |
| 8 | 24.5 | 5.8 | 51.8 | 48.8 | 45.7 |
| 10 | 25.0 | 6.5 | 50.3 | 47.3 | 43.8 |
| 16 | 25.0 | 8.2 | 47.3 | 44.3 | 39.7 |
| 20 | 25.0 | 9.3 | 45.8 | 42.8 | 37.7 |
| 25 | 24.3 | 10.4 | 44.3 | 41.3 | 35.8 |
| 31.25 | 23.6 | 11.7 | 42.9 | 39.9 | 33.9 |
| 62.5 | 21.5 | 17 | 38.4 | 35.4 | 27.8 |
| 100 | 20.1 | 22.0 | 35.3 | 32.3 | 23.8 |
