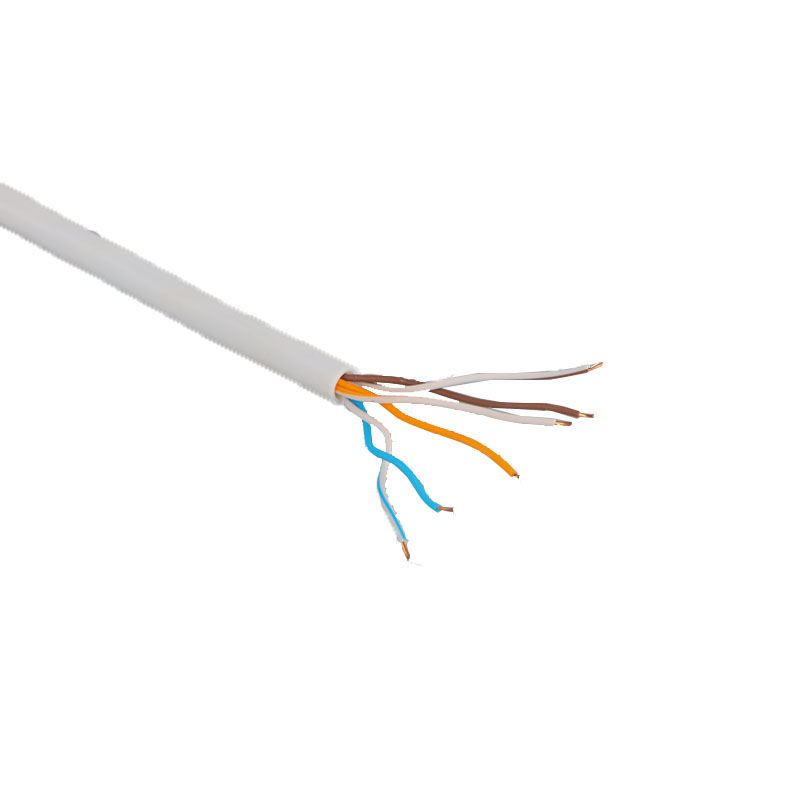

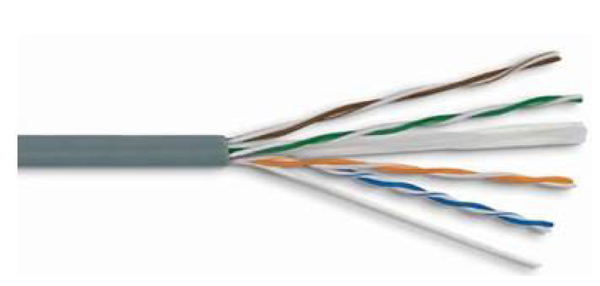

CAT 6 UTP
4*2*(1/0.57mmCU +1.03mmHDPE)+ PE Cross Separator+Ripcord +6.2mm PVC.
CONSTRUCTION：
CENTER CONDUCTOR: 0.574 MM COPER
DIELECTRIC: 1.02 MM COLOUR-CODED PE INSULATION
JACKET: PE SEPARATOR +70-DEGREE FLAME-RETARDANT PVC JACKET
OUTSIDE DIAMETER: 6.5 MM
CHARACTERISTICS:
TEMPERATURE RATING: -20℃ to 60℃
VELOCITY OF PROPAGATION: 65%
CHARACTERISTICS IMPEDANCE:100 ± 15Ω
OTHER ELECTRIC PERFORMANCE
| Frequenc(MHz) | RL(dB) | Attenuation(dB/100m) | NEXT(dB) | NEXT PS(dB) | ELFEXT(dB) |
| 1 | 20.0 | 2.0 | 74.3 | 72.3 | 67.8 |
| 4 | 23.0 | 3.8 | 65.3 | 63.3 | 55.8 |
| 8 | 24.5 | 5.3 | 60.8 | 58.8 | 49.7 |
| 10 | 25.0 | 6.0 | 59.3 | 57.3 | 47.8 |
| 16 | 25.0 | 7.6 | 56.2 | 54.2 | 43.7 |
| 20 | 25.0 | 8.5 | 54.8 | 52.8 | 41.8 |
| 25 | 24.3 | 9.5 | 53.3 | 51.3 | 39.8 |
| 31.25 | 23.6 | 10.7 | 51.9 | 49.9 | 37.9 |
| 62.5 | 21.5 | 15.4 | 47.4. | 45.4. | 31.9 |
| 100 | 20.1 | 19.8 | 44.3 | 42.3 | 27.8 |
| 200 | 18.0 | 29.0 | 39.8 | 37.8 | 21.8 |
| 250 | 17.3 | 32.8 | 38.3 | 36.3 | 19.8 |
CONSTRUCTION：
CENTER CONDUCTOR: 0.574 MM COPER
DIELECTRIC: 1.02 MM COLOUR-CODED PE INSULATION
JACKET: PE SEPARATOR +70-DEGREE FLAME-RETARDANT PVC JACKET
OUTSIDE DIAMETER: 6.5 MM
CHARACTERISTICS:
TEMPERATURE RATING: -20℃ to 60℃
VELOCITY OF PROPAGATION: 65%
CHARACTERISTICS IMPEDANCE:100 ± 15Ω
OTHER ELECTRIC PERFORMANCE
| Frequenc(MHz) | RL(dB) | Attenuation(dB/100m) | NEXT(dB) | NEXT PS(dB) | ELFEXT(dB) |
| 1 | 20.0 | 2.0 | 74.3 | 72.3 | 67.8 |
| 4 | 23.0 | 3.8 | 65.3 | 63.3 | 55.8 |
| 8 | 24.5 | 5.3 | 60.8 | 58.8 | 49.7 |
| 10 | 25.0 | 6.0 | 59.3 | 57.3 | 47.8 |
| 16 | 25.0 | 7.6 | 56.2 | 54.2 | 43.7 |
| 20 | 25.0 | 8.5 | 54.8 | 52.8 | 41.8 |
| 25 | 24.3 | 9.5 | 53.3 | 51.3 | 39.8 |
| 31.25 | 23.6 | 10.7 | 51.9 | 49.9 | 37.9 |
| 62.5 | 21.5 | 15.4 | 47.4. | 45.4. | 31.9 |
| 100 | 20.1 | 19.8 | 44.3 | 42.3 | 27.8 |
| 200 | 18.0 | 29.0 | 39.8 | 37.8 | 21.8 |
| 250 | 17.3 | 32.8 | 38.3 | 36.3 | 19.8 |
