GYTS


  • GYTS

  • GYTS.pdf

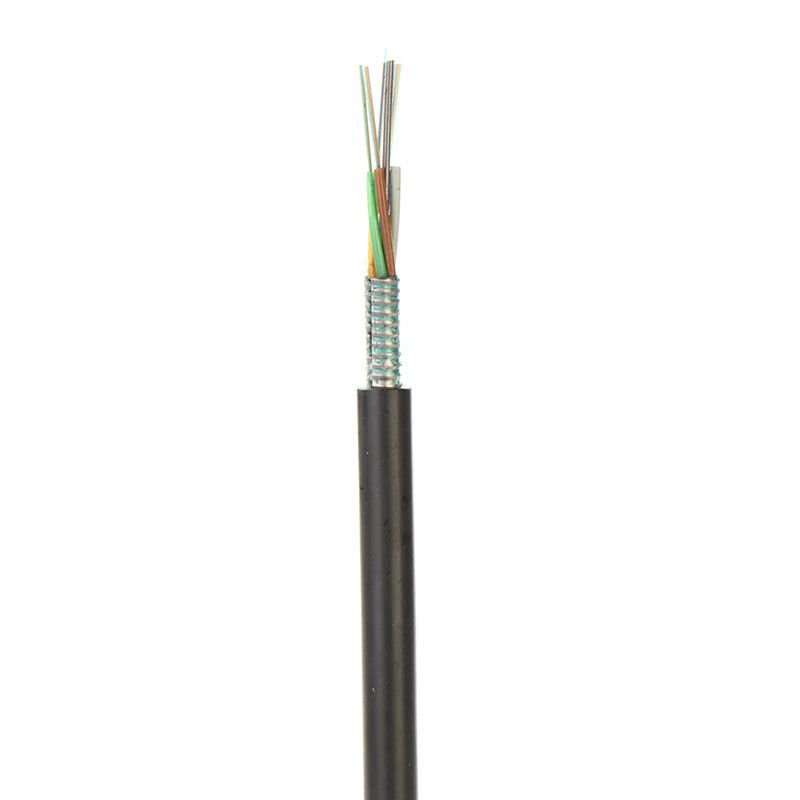

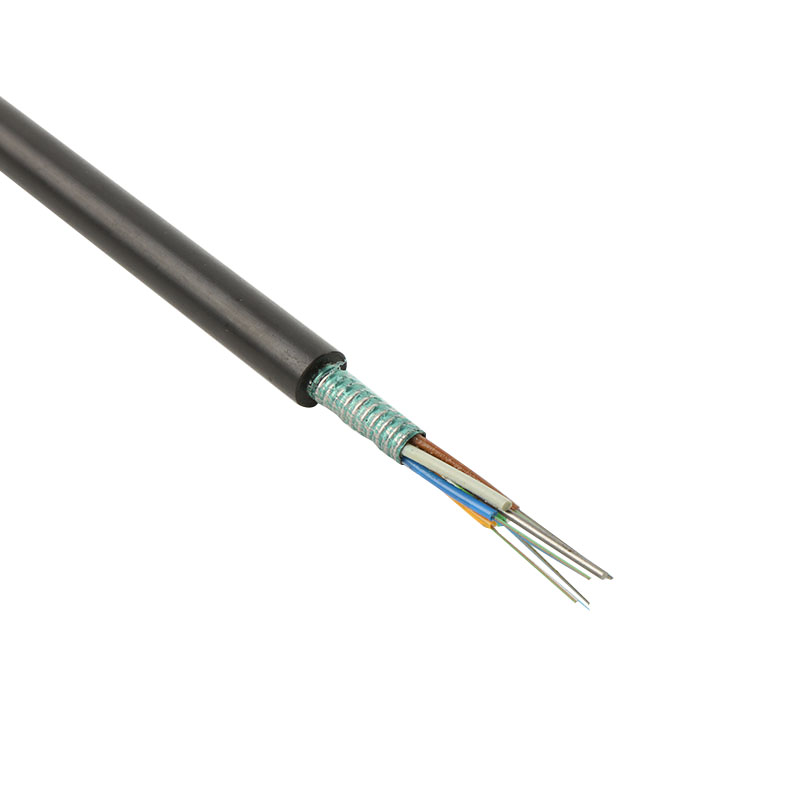

  • Multi Tube, Filler, Central Steel Wire, Corrugated Steel Tape, PE Sheath.

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


PRODUCT DESCRIPTION:

The fibers, either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core which is filled with the filling compound to protect it from water ingress. The cable is completed with a PE sheath.

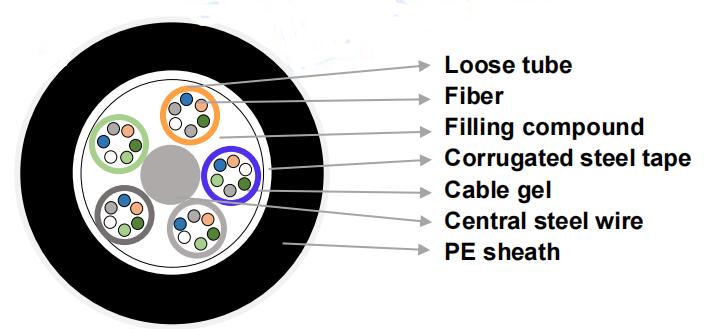

PRODUCT DESCRIPTION


CHARACTERISTICS:

  • Accurate fiber excess length ensures good mechanical and temperature performance.
  • High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a critical protection of fiber; specially designed compact structure is good at preventing loose tubes from shrinking.
  • Crush resistance and flexibility.
  • PE sheath protects cable from ultraviolet radiation.
  • The following measures are taken to ensure the cable watertight:
-Steel wire used as the central strength member;
-Loose tube filling compound;
-100% cable core filling;
-Corrugated steel tape enhancing moisture proof.


Bending Radius

Static 10xD Dynamic20xD

Storage/Operating Temperature

-40℃~+60℃


Cable Type increased by 2 fibers

GYTS

4-30

Cores

GYTS

4-36

Cores

GYTS

32-60

Cores

GYTS

32-72

Cores

GYTS

74-96

Cores

GYTS

32-60

Cores

GYTS

32-72

Cores

GYTS

74-96

Cores

Fiber Count

4-30

4-36

32-60

32-72

74-96

98-120

122-144

146-216

Tubes+Filler

5

6

5

6

8

10

12

6/12

Max No. of fibers in Tube

6

6

12

12

12

12

12

6/12

Cable Diameter(mm)

9.6-

10.6-

10.6-

11-

12.5-

13.8-

15.6-

15.6-

Cable Weight(kg/km)

100-

120-

120-

130-

180-

210-

260-

260-

Tensile Strength Long/Short Term(N)

600/1500

600/1500

600/1500

600/1500

600/1500

600/1500

600/1500

600/1500

Crush Resistance Long/Short Term(N/100mm)

300/1000

300/1000

300/1000

300/1000

300/1000

300/1000

300/1000

300/1000
