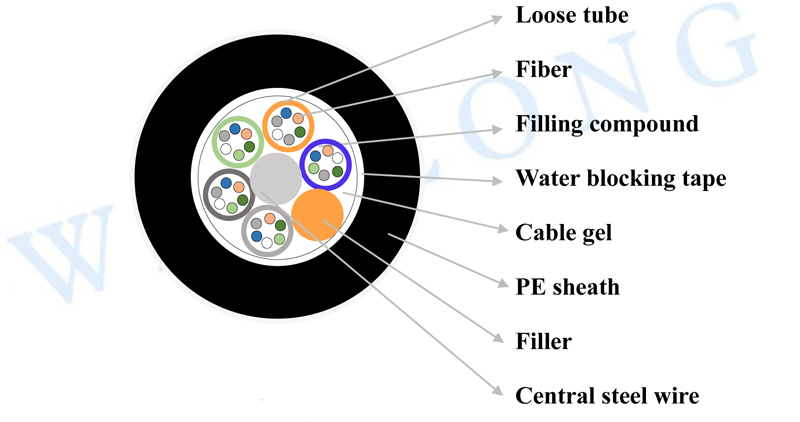

Strengthening of the Centre for wire, or fiber loose tube PBT may have filled rope around the outside package, the cable core filled ointment, with water blocking vertical packages, PE layer of protection.
Reasonable design and precise control over the loose-tube fiber in the remainder of a long, fiber optic cable with excellent performance and temperature tensile properties.
Core cable filled ointment to ensure that the vertical water blocking effect.
Loose-tube (filled with rope) to strengthen the focus on the central pieces of SZ-cutter.
Smooth, cable fiber optic cable installation process can be very small coefficient of friction.
High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a critical protection of fiber; specially designed compact structure is good at preventing loose tubes from shrinking.
PE sheath protects cable from ultraviolet radiation.
Bending Radius | Static 10xD Dynamic20xD |
Storage/Operating Temperature | -40℃~+60℃ |
Cable Type increased by 2 fibers |
GYTY 4-30 Cores |
GYTY 4-36 Cores |
GYTY 32-60 Cores |
GYTY 32-72 Cores |
GYTY 74-96 Cores |
GYTY 98-120 Cores |
GYTY 122-144 Cores |
GYTY 146-216 Cores |
Fiber Count | 4-30 | 4-36 | 32-60 | 32-72 | 74-96 | 98-120 | 122-144 | 146-216 |
Tubes+Filler | 5 | 6 | 5 | 6 | 8 | 10 | 12 | 6/12 |
Max No. of fibers in Tube | 6 | 6 | 12 | 12 | 12 | 12 | 12 | 6/12 |
Cable Diameter(mm) | 9.6- | 10.2- | 10.6- | 11- | 12.5- | 13.8- | 15.4- | 16- |
Cable Weight (kg/km) | 80- | 90- | 95- | 100- | 120- | 160- | 210- | 220- |
Tensile Strength Long/Short Term(N) |
600/1500 |
600/1500 |
600/1500 |
600/1500 |
600/1500 |
600/1500 |
600/1500 |
600/1500 |
Crush Resistance Long/Short Term(N/100mm) |
300/1000 |
300/1000 |
300/1000 |
300/1000 |
300/1000 |
300/1000 |
300/1000 |
300/1000 |
