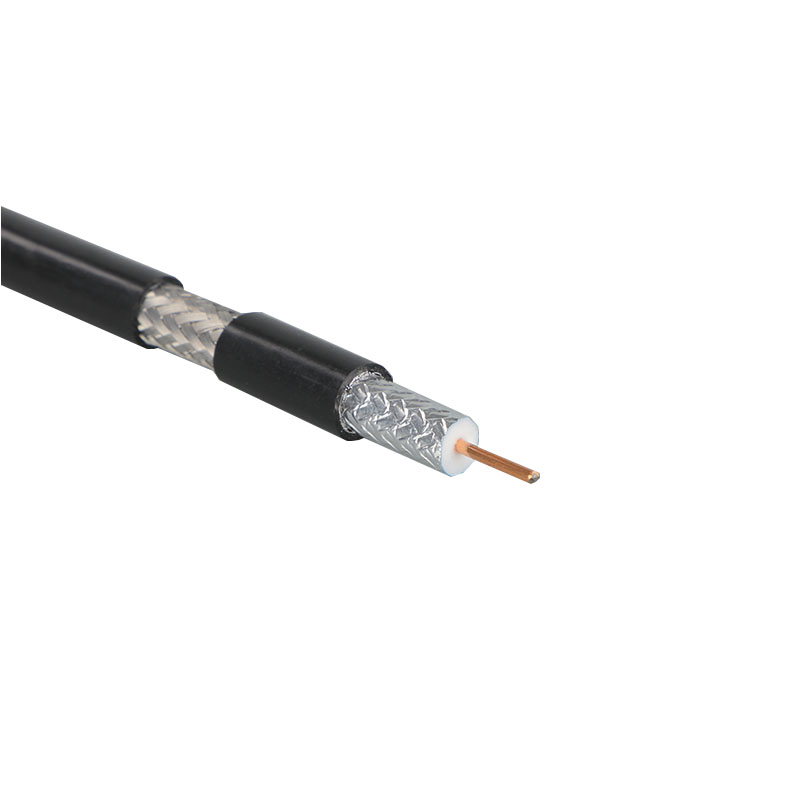

CENTER CONDUCTOR: 1.00 ± 0.01 MM BARE COPPER/COPPER CLAD STEEL
DIELECTRIC:
GAS EXPANDED POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 4.60 ± 0.05MM
SHIELD:
1st SHIELD: ALUMINUM FOIL NON-BONDED/BONDED
2nd SHIELD: ALUMINUM BRAID WIRE 40%-90% COVERAGE
JACKET:
PVC/PE JACKET
NOMINAL DIAMETER OVER JACKET: 6.60 ± 0.05 mm
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 ± 3.0 Ohms
CAPACITANCE:52 ± 2(pF/m)
VELOCITY OF PROPAGATION: 85.0% NOMINAL
RETURN LOSS:
5-470MHz(dB) ≥ 23
470-860MHz(dB) ≥ 20
860-2150MHz(dB) ≥ 18
ATTENUATION @ 68°F (20°C):
@ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5 MHz | 0.49 dB | 1.60 dB |
50 MHz | 1.40 dB | 4.60 dB |
100 MHz | 1.98 dB | 6.50 dB |
200 MHz | 2.90 dB | 9.50 dB |
460 MHz | 4.57 dB | 15.00 dB |
860 MHz | 5.95 dB | 19.50 dB |
1000 MHz | 6.55 dB | 21.50 dB |
1750 MHz | 8.84 dB | 29.00 dB |
2150MHz | 9.91 dB | 32.50 dB |
