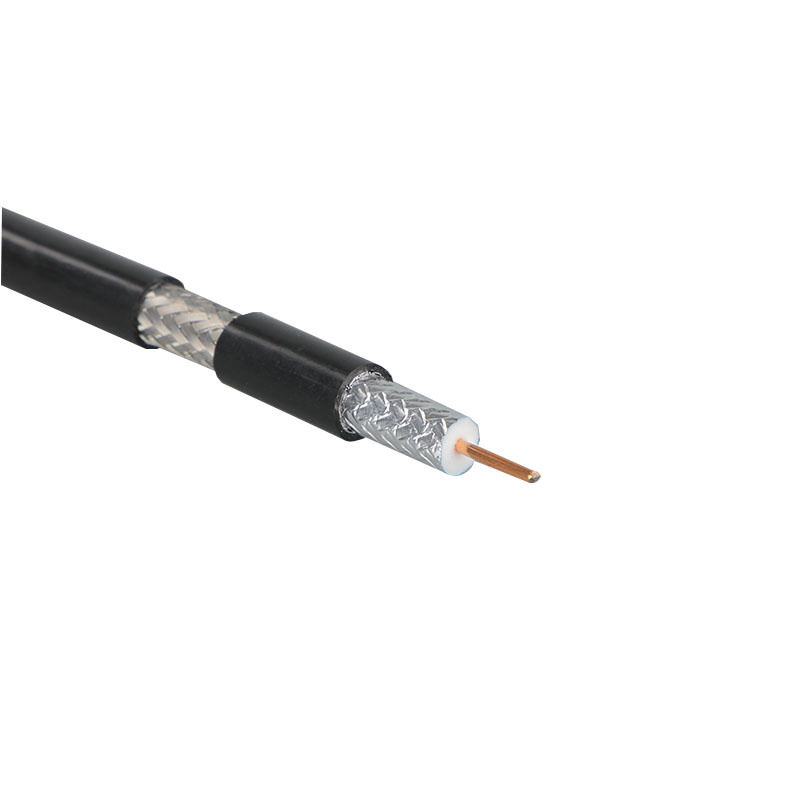

CENTER CONDUCTOR: 1.25 ± 0.01 MM BARE COPPER/COPPER CLAD STEEL
DIELECTRIC:
GAS EXPANDED POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 5.50 ± 0.05MM
SHIELD:
1st SHIELD: ALUMINUM FOIL NON-BONDED/BONDED
2nd SHIELD: ALUMINUM BRAID WIRE 40%-90% COVERAGE
JACKET:
PVC/PE JACKET
NOMINAL DIAMETER OVER JACKET: 7.80 ± 0.05 mm
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 ± 3.0 Ohms
CAPACITANCE:52 ± 2(pF/m)
VELOCITY OF PROPAGATION: 85.0% NOMINAL
RETURN LOSS:
5-470MHz(dB) ≥ 23
470-860MHz(dB) ≥ 20
860-2150MHz(dB) ≥ 18
ATTENUATION @ 68°F (20°C):
@ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5 MHz | 0.46 dB | 1.50 dB |
50 MHz | 1.07 dB | 3.50 dB |
100 MHz | 1.54 dB | 5.00 dB |
200 MHz | 2.29 dB | 7.50 dB |
460 MHz | 3.51 dB | 11.50 dB |
860 MHz | 4.73 dB | 15.50 dB |
1000 MHz | 5.18 dB | 17.00 dB |
1750 MHz | 6.71 dB | 22.00 dB |
2150MHz | 7.93 dB | 26.00 dB |
