RG11-F1160BEF
1.63mm CCS,7.11mm Foam PE,Bonded Aluminum Foil,96*0.16mm Aluminum Braid 60%, Flooding Compound ,10.16mm PE.
Availability: | |
---|---|
COPPER-CLAD STEEL,FPE, BONDED LAMINATED ALUMINUM TAPE,60%ALUMINUM BRAID , FLOODED FOR UNDERGROUND,PE JACKET

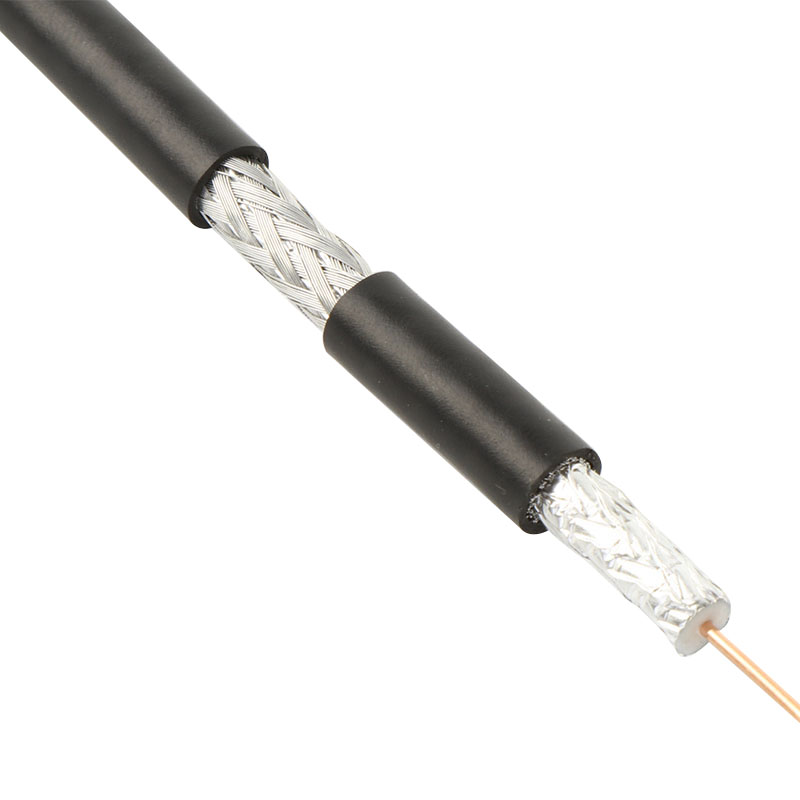

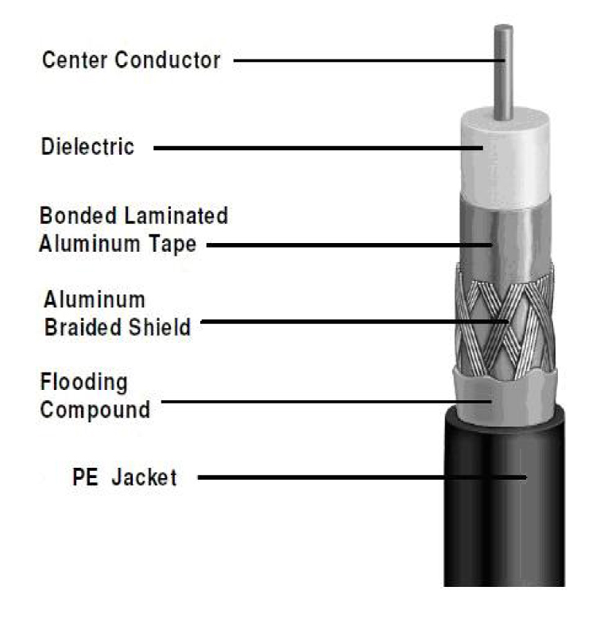

CENTER CONDUCTOR: 1.63 mm COPPER-CLAD STEEL
DIELECTRIC:
GAS EXPANDED POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 7.11 mm
SHIELD:
1st SHIELD: LAMINATED ALUMINUM TAPE BONDED TO THE DIELECTRIC
2nd SHIELD: 96*0.16 mm ALUMINUM BRAID WIRE 60% COVERAGE
JACKET:
PE JACKET(FLOODED FOR UNDERGROUND)
NOMINAL DIAMETER OVER JACKET: 10.16 mm
NOMINAL JACKET THICKNESS: 1.07 mm
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 +/- 3.0 Ohms
VELOCITY OF PROPAGATION: 85.0% NOMINAL
ATTENUATION @ 68°F (20°C):
@ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5 MHz | 0.38 dB | 1.65 dB |
55 MHz | 0.96 dB | 3.15 dB |
83 MHz | 1.18 dB | 3.87 dB |
187 MHz | 1.75 dB | 5.74 dB |
211 MHz | 1.90 dB | 6.23 dB |
250 MHz | 2.05 dB | 6.72 dB |
300 MHz | 2.25 dB | 7.38 dB |
350 MHz | 2.42 dB | 7.94 dB |
400 MHz | 2.60 dB | 8.53 dB |
450 MHz | 2.75 dB | 9.02 dB |
500 MHz | 2.90 dB | 9.51 dB |
550 MHz | 3.04 dB | 9.97 dB |
600 MHz | 3.18 dB | 10.43 dB |
750 MHz | 3.65 dB | 11.97 dB |
865 MHz | 3.98 dB | 13.05 dB |
1000 MHz | 4.35 dB | 14.27 dB |
COPPER-CLAD STEEL,FPE, BONDED LAMINATED ALUMINUM TAPE,60%ALUMINUM BRAID , FLOODED FOR UNDERGROUND,PE JACKET
CENTER CONDUCTOR: 1.63 mm COPPER-CLAD STEEL
DIELECTRIC:
GAS EXPANDED POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 7.11 mm
SHIELD:
1st SHIELD: LAMINATED ALUMINUM TAPE BONDED TO THE DIELECTRIC
2nd SHIELD: 96*0.16 mm ALUMINUM BRAID WIRE 60% COVERAGE
JACKET:
PE JACKET(FLOODED FOR UNDERGROUND)
NOMINAL DIAMETER OVER JACKET: 10.16 mm
NOMINAL JACKET THICKNESS: 1.07 mm
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 +/- 3.0 Ohms
VELOCITY OF PROPAGATION: 85.0% NOMINAL
ATTENUATION @ 68°F (20°C):
@ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5 MHz | 0.38 dB | 1.65 dB |
55 MHz | 0.96 dB | 3.15 dB |
83 MHz | 1.18 dB | 3.87 dB |
187 MHz | 1.75 dB | 5.74 dB |
211 MHz | 1.90 dB | 6.23 dB |
250 MHz | 2.05 dB | 6.72 dB |
300 MHz | 2.25 dB | 7.38 dB |
350 MHz | 2.42 dB | 7.94 dB |
400 MHz | 2.60 dB | 8.53 dB |
450 MHz | 2.75 dB | 9.02 dB |
500 MHz | 2.90 dB | 9.51 dB |
550 MHz | 3.04 dB | 9.97 dB |
600 MHz | 3.18 dB | 10.43 dB |
750 MHz | 3.65 dB | 11.97 dB |
865 MHz | 3.98 dB | 13.05 dB |
1000 MHz | 4.35 dB | 14.27 dB |
