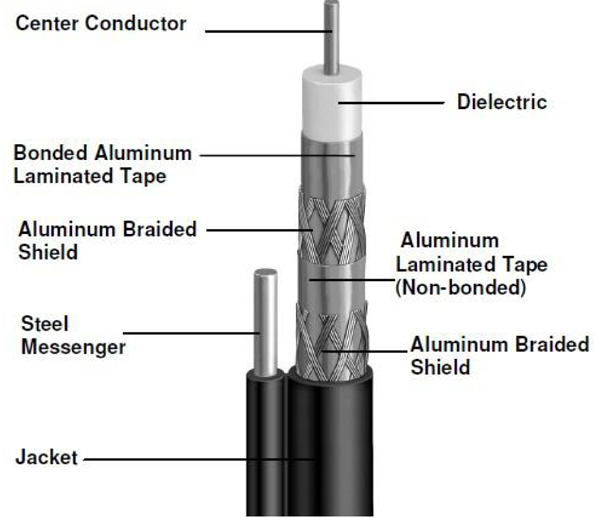

RG11-F11SSVM
1.63mm CCS,7.11mm Foam PE,Bonded Aluminum Foil,96*0.16mm Aluminum Braid 60%, Aluminum Foil ,64*0.16mm Aluminum Braid 40% ,10.34mm PVC,1.30mm Steel.
COPPER-CLAD STEEL,FPE, BONDED LAMINATED ALUMINUM TAPE,60%ALUMINUM BRAID , LAMINATED ALUMINUM TAPE, 40%ALUMINUM BRAID, PVC JACKET, STEEL MESSENGER
CENTER CONDUCTOR: 1.63 mm COPPER-CLAD STEEL
DIELECTRIC:
GAS EXPANDED POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 7.11 mm
SHIELD:
1st SHIELD: LAMINATED ALUMINUM TAPE BONDED TO THE DIELECTRIC
2nd SHIELD: 96*0.16 mm ALUMINUM BRAID WIRE 60% COVERAGE
3rd: LAMINATED ALUMINUM TAPE
4th: 64*0.16 mm ALUMINUM BRAID WIRE 40% COVERAGE
JACKET:
PVC JACKET
NOMINAL DIAMETER OVER JACKET: 10.34 mm
NOMINAL JACKET THICKNESS: 0.94 mm
MESSENGER:
NOMINAL DIAMETER OF MESSENGER: 1.83 mm
MINIMUM BREAKING STRENGTH: 365 lbs. (166 kgf)
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 +/- 3.0 Ohms
VELOCITY OF PROPAGATION: 85.0% NOMINAL
ATTENUATION @ 68°F (20°C):
@ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5 MHz | 0.38 dB | 1.65 dB |
55 MHz | 0.96 dB | 3.15 dB |
83 MHz | 1.18 dB | 3.87 dB |
187 MHz | 1.75 dB | 5.74 dB |
211 MHz | 1.90 dB | 6.23 dB |
250 MHz | 2.05 dB | 6.72 dB |
300 MHz | 2.25 dB | 7.38 dB |
350 MHz | 2.42 dB | 7.94 dB |
400 MHz | 2.60 dB | 8.53 dB |
450 MHz | 2.75 dB | 9.02 dB |
500 MHz | 2.90 dB | 9.51 dB |
550 MHz | 3.04 dB | 9.97 dB |
600 MHz | 3.18 dB | 10.43 dB |
750 MHz | 3.65 dB | 11.97 dB |
865 MHz | 3.98 dB | 13.05 dB |
1000 MHz | 4.35 dB | 14.27 dB |
