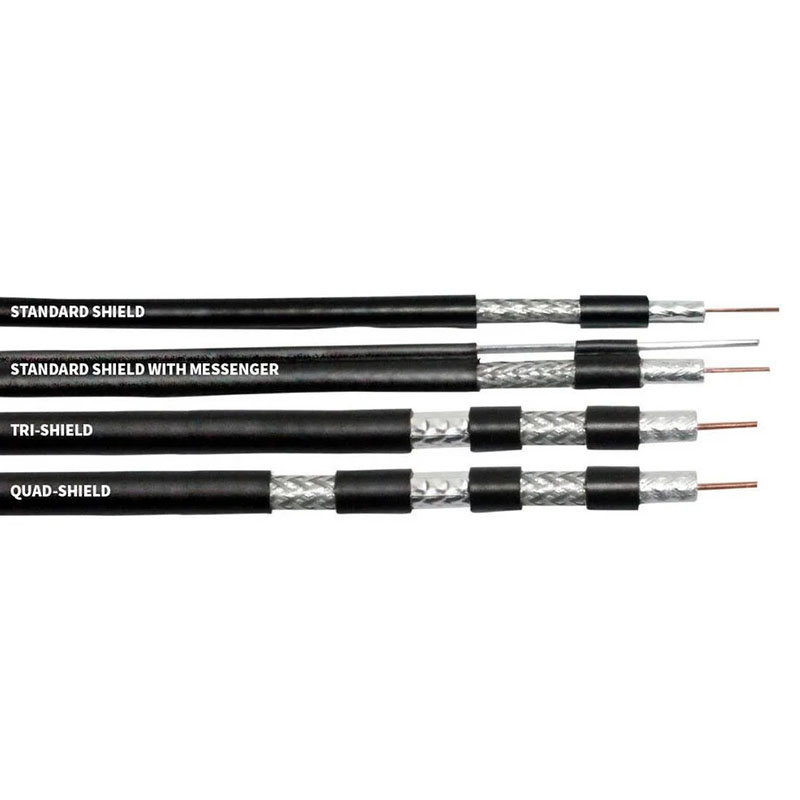

RG6- F6SSEF
1.02mm CCS,4.57mm Foam PE,Bonded Aluminum Foil,64*0.16mm Aluminum Braid 60%, Aluminum Foil ,48*0.16mm Aluminum Braid 40%,Flooding Compound ,7.54mm PE.
COPPER-CLAD STEEL,FPE, BONDED LAMINATED ALUMINUM TAPE,60%ALUMINUM BRAID , LAMINATED ALUMINUM TAPE, 40%ALUMINUM BRAID, FLOODED FOR
UNDERGROUND,PE JACKET
CENTER CONDUCTOR: 1.02 mm COPPER-CLAD STEEL
DIELECTRIC:
GAS EXPANDED POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 4.57 mm
SHIELD:
1st SHIELD: LAMINATED ALUMINUM TAPE
BONDED TO THE DIELECTRIC
2nd SHIELD: 64*0. 16 mm ALUMINUM BRAID WIRE
60% COVERAGE
3rd: LAMINATED ALUMINUM TAPE
4th: 48*0. 16 mm ALUMINUM BRAID WIRE
40% COVERAGE
JACKET:
PE JACKET(FLOODED FOR UNDERGROUND)
NOMINAL DIAMETER OVER JACKET: 7.54 mm
NOMINAL JACKET THICKNESS: 0.84 mm
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 +/- 3.0 Ohms
VELOCITY OF PROPAGATION: 85.0% NOMINAL
ATTENUATION @ 68°F (20°C):
@ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5 MHz | 0.58 dB | 2.80 dB |
55 MHz | 1.60 dB | 5.25 dB |
83 MHz | 1.95 dB | 6.40 dB |
187 MHz | 2.85 dB | 9.35 dB |
211 MHz | 3.05 dB | 10.00 dB |
250 MHz | 3.30 dB | 10.82 dB |
300 MHz | 3.55 dB | 11.64 dB |
350 MHz | 3.85 dB | 12.63 dB |
400 MHz | 4.15 dB | 13.61 dB |
450 MHz | 4.40 dB | 14.43 dB |
500 MHz | 4.66 dB | 15.29 dB |
550 MHz | 4.90 dB | 16.08 dB |
600 MHz | 5.10 dB | 16.73 dB |
750 MHz | 5.65 dB | 18.54 dB |
865 MHz | 6.10 dB | 20.01 dB |
1000 MHz | 6.55 dB | 21.49 dB |
