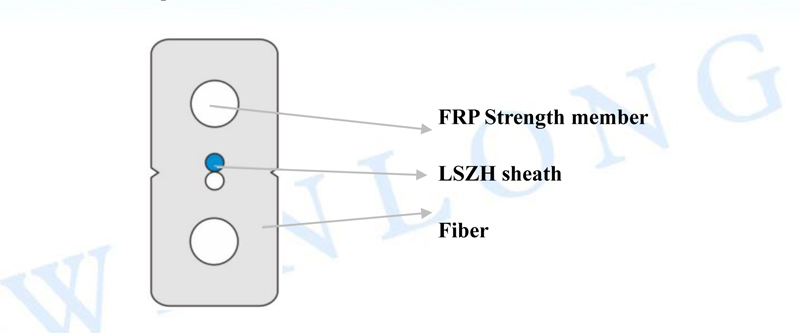

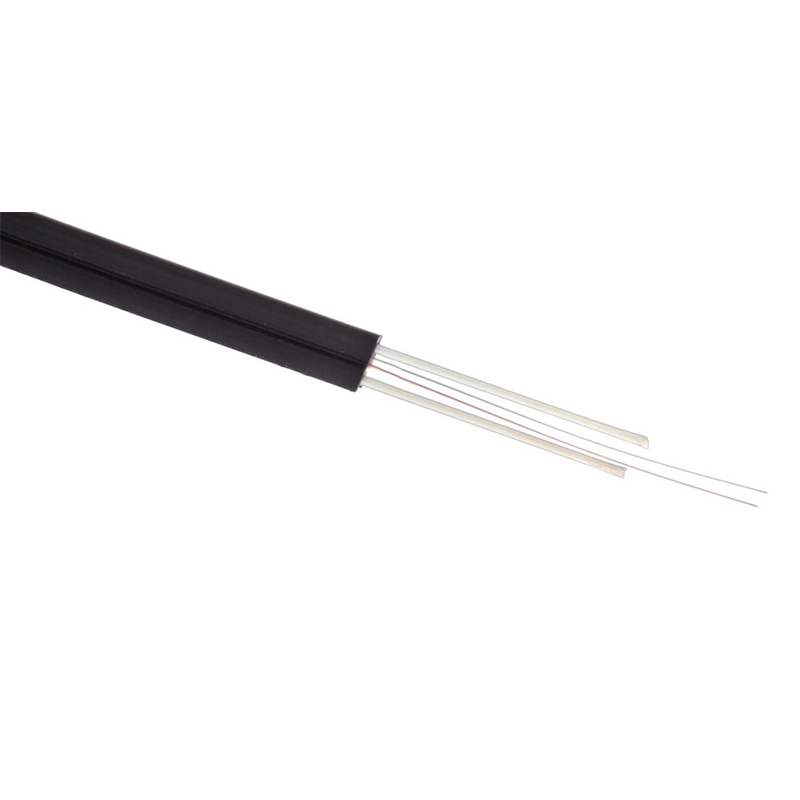

The optical fiber(s) is placed in the center. Two KFRPS are placed at two sides. Then the cable is completed with LSZH sheath.
Simple structure, light weight and high tensile strength.
Novel groove design, easily strip and splice, simplify the installation and maintenance.
Low smoke, zero halogen and flame-retardant sheath, environment-friendly, good Safety.
Bending Radius | Static 10xD Dynamic20xD |
Storage/Operating Temperature | -20℃~+60℃ |
Cable Type | GJXFH-1B6a2 | GJXFH-2B6a2 |
Cable Diameter(mm) | (2.0±0.1)×(3.0±0.1) | (2.0±0.1)×(3.0±0.1) |
Cable Weight(kg/km) | 7.5- | 7.5- |
Tensile Strength Long/Short Term(N) | 40/80 | 40/80 |
Crush Resistance Long/Short Term(N/100mm) | 500/1000 | 500/1000 |
