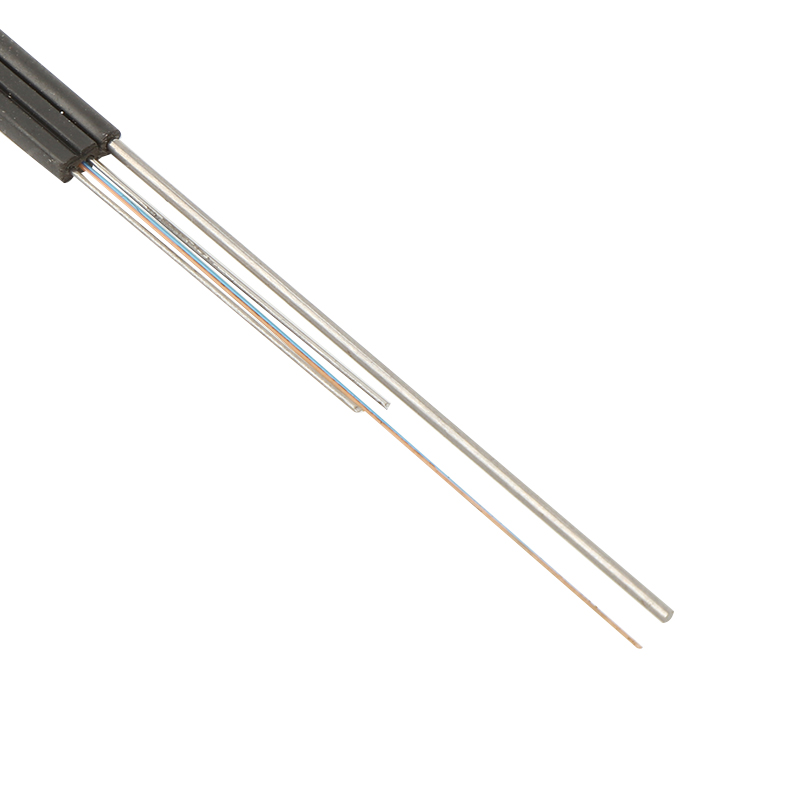

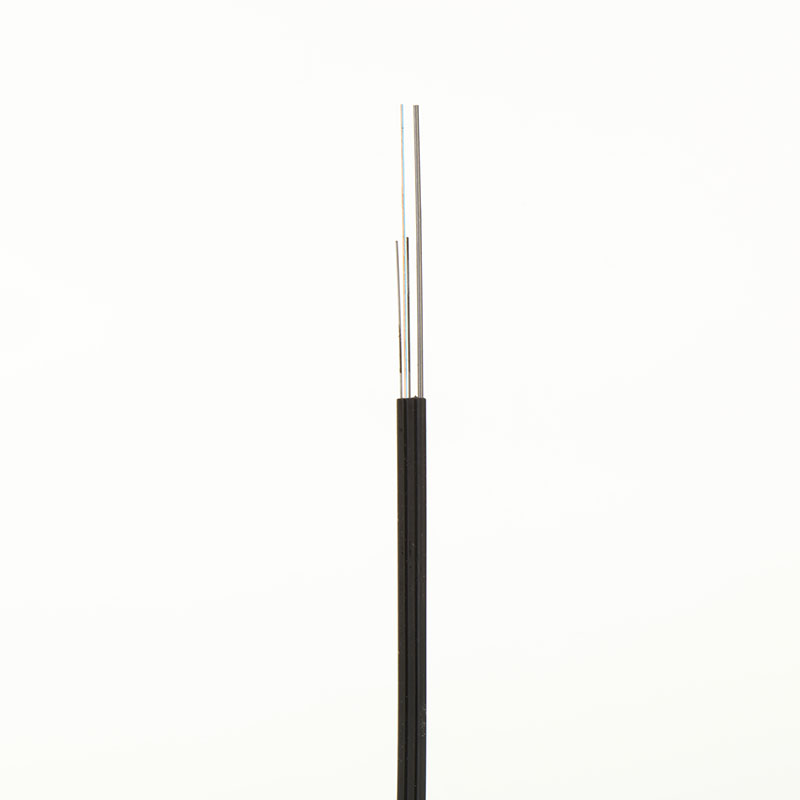

GJYXCH


  • GJYXCH

  • GJYXCH.pdf

  • Fiber, Steel Strength Member, LSZH Sheath, Steel Messenger.

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

PRODUCT DESCRIPTION:

A steel as the additional strength member is added to GJXH cable to form bow-type drop cables such as GJYXCH.

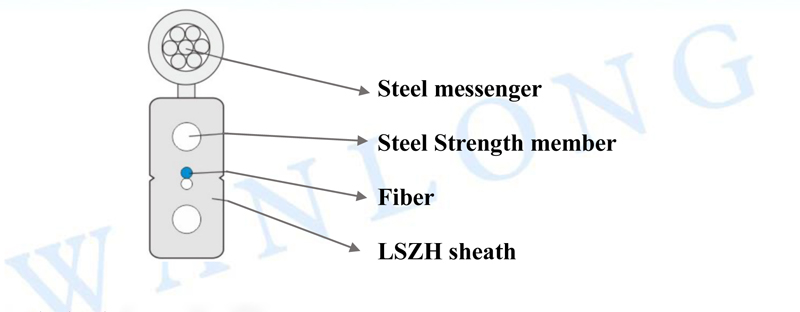

GJYXCH


CHARACTERISTICS:

  • Simple structure, light weight and high tensile strength.

  • From outdoor duct application to indoor wiring.

  • Low smoke, zero halogen and flame-retardant sheath, environment-friendly, good Safety.


Bending Radius

Static 10xD Dynamic20xD

Storage/Operating Temperature

-20℃~+60℃

Cable Type

GJYXCH-1B6a2

GJYXCH-4B6a2

Cable Diameter(mm)

(2.0±0.1)×(5.0±0.1)

(2.0±0.1)×(5.0±0.1)

Cable Weight(kg/km)

20.0-

20.5-

Tensile Strength

Long/Short Term(N)

300/600

300/600

Crush Resistance

Long/Short Term(N/100mm)

1000/2200

1000/2200
