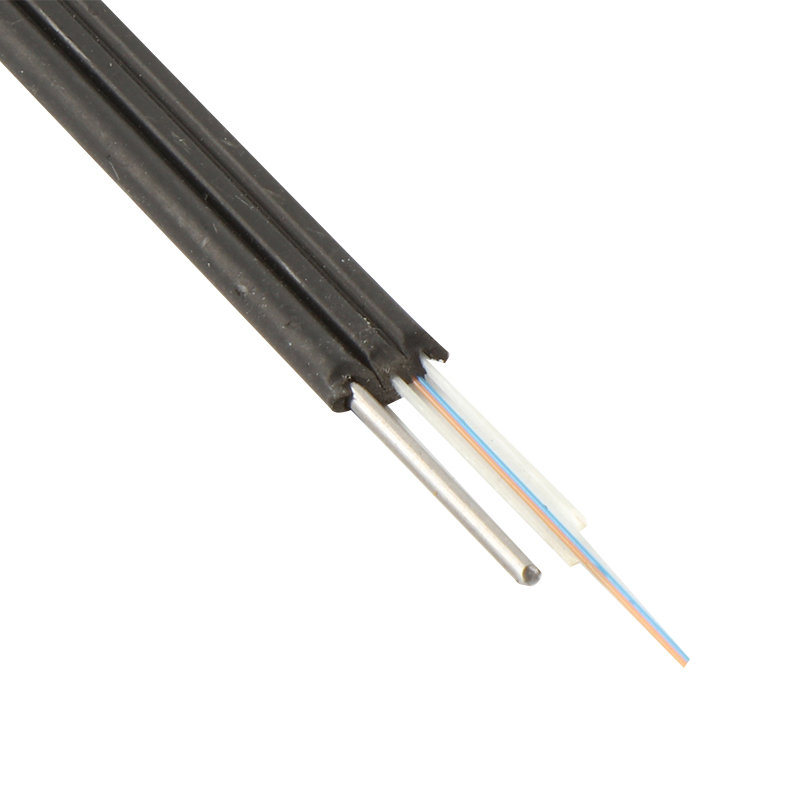

GJYXFCH

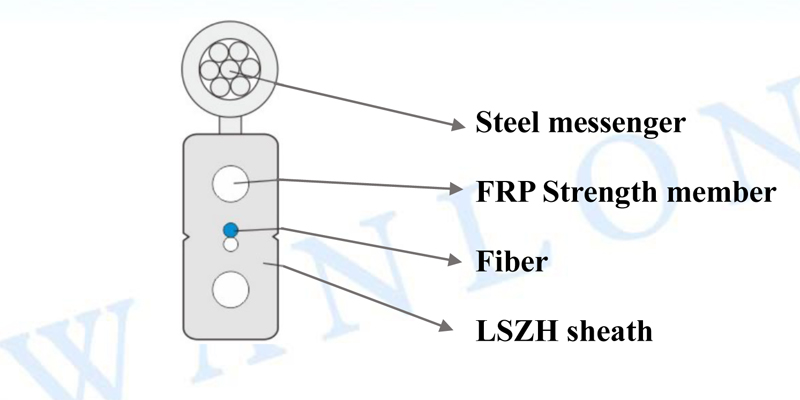

Fiber, FRP Strength Member, LSZH Sheath, Steel Messenger.
A steel rope as the additional strength member is added to GJXFH/GJXFDH cable to form bow-type drop cables such as GJYXFCH/GJYXFDCH.
Simple structure, light weight and high tensile strength.
From outdoor duct application to indoor wiring.
Low smoke, zero halogen and flame-retardant sheath, environment-friendly, good Safety.
Bending Radius | Static 10xD Dynamic20xD |
Storage/Operating Temperature | -20℃~+60℃ |
Cable Type | GJYXFCH-1B6a2 | GJYXFDCH-4B6a2 |
Cable Diameter(mm) | (2.0±0.1)×(5.2±0.3) | (2.0±0.1)×(5.2±0.3) |
Cable Weight(kg/km) | 20.7- | 23.6- |
Tensile Strength Long/Short Term(N) | 300/600 | 300/600 |
Crush Resistance Long/Short Term(N/100mm) | 1000/2200 | 1000/2200 |
A steel rope as the additional strength member is added to GJXFH/GJXFDH cable to form bow-type drop cables such as GJYXFCH/GJYXFDCH.
Simple structure, light weight and high tensile strength.
From outdoor duct application to indoor wiring.
Low smoke, zero halogen and flame-retardant sheath, environment-friendly, good Safety.
Bending Radius | Static 10xD Dynamic20xD |
Storage/Operating Temperature | -20℃~+60℃ |
Cable Type | GJYXFCH-1B6a2 | GJYXFDCH-4B6a2 |
Cable Diameter(mm) | (2.0±0.1)×(5.2±0.3) | (2.0±0.1)×(5.2±0.3) |
Cable Weight(kg/km) | 20.7- | 23.6- |
Tensile Strength Long/Short Term(N) | 300/600 | 300/600 |
Crush Resistance Long/Short Term(N/100mm) | 1000/2200 | 1000/2200 |
