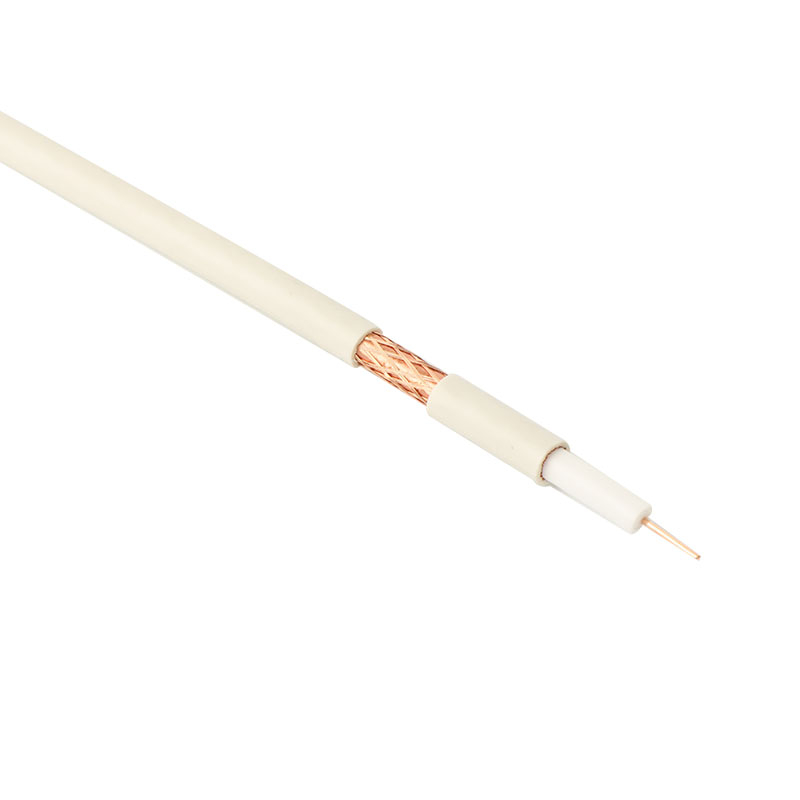

RG58AU 90%
0.94mm Tinned Copper,2.95mm Foam PE,Bonded Aluminum Foilor Copper Foi,96*0.12mm Tinned Copper Braid or Copper Clad Aluminum 90%,4.93mm PVC.
TINNED COPPER, FPE, BONDED LAMINATED ALUMINUM OR COPPER FOIL,90% TINNED COPPER BRAID OR COPPER CLAD ALUMINUM, PVC
CENTER CONDUCTOR:0.94 mm TINNED COPPER
DIELECTRIC:
GAS EXPANDED POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 2.95 mm
SHIELD:
1ST SHIELD: LAMINATED ALUMINUM TAPE BONDED TO THE DIELECTRIC
2nd SHIELD: 96*0. 12 mm TINNED COPPER BRAID OR COPPER CLAD ALUMINUM BRAID 90% COVERAGE
JACKET:
PVC
NOMINAL DIAMETER OVER JACKET: 4.93 mm
NOMINAL JACKET THICKNESS: 0.76 mm
ELECTRICAL PROPERTIES:
IMPEDANCE: 50.0 +/- 2.0 Ohms
VELOCITY OF PROPAGATION: 66.0% NOMINAL
ATTENUATION @ 68°F (20°C):
@ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5 MHz | 1.0 dB | 3.1 dB |
10 MHz | 1.3 dB | 4.3 dB |
50 MHz | 3.1 dB | 10.2 dB |
100 MHz | 4.5 dB | 14.8 dB |
200 MHz | 6.6 dB | 21.6 dB |
400 MHz | 10.0 dB | 32.8 dB |
700 MHz | 14.2 dB | 46.6 dB |
900 MHz | 16.6 dB | 54.4 dB |
1000 MHz | 18.1 dB | 59.3 dB |
