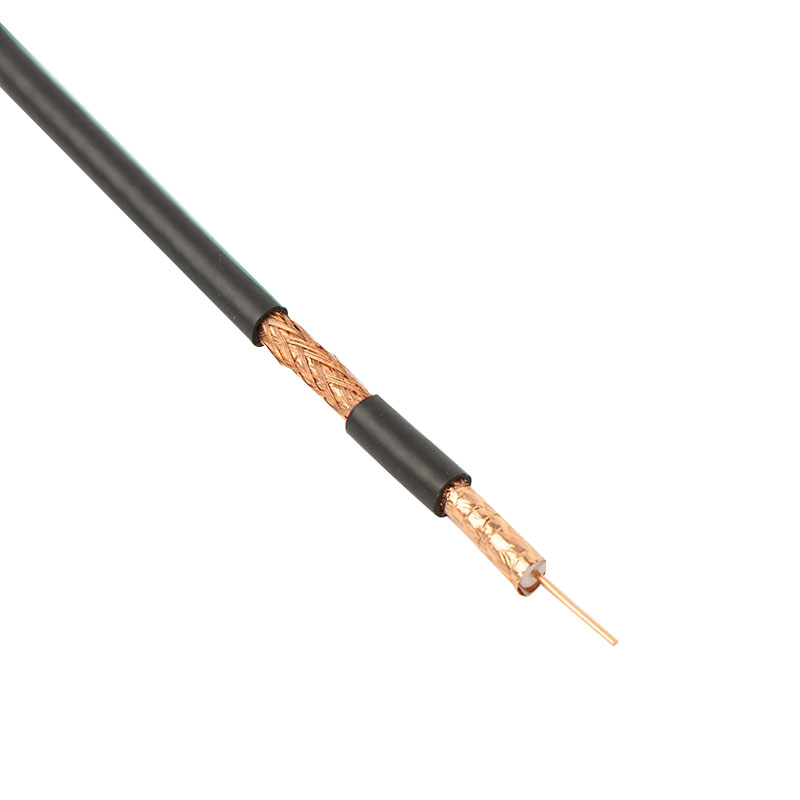

RG58U 90%
0.84mm Bare Copper,2.95mm Solid PE,Bonded Aluminum Foil or Copper Foil,96*0.12mm Tinned Copper Braid or Copper Clad Aluminum 90%,4.90mm PVC.
BARE COPPER, SPE, BONDED LAMINATED ALUMINUM OR COPPER FOIL,90% TINNED COPPER BRAID OR COPPER CLAD ALUMINUM, PVC

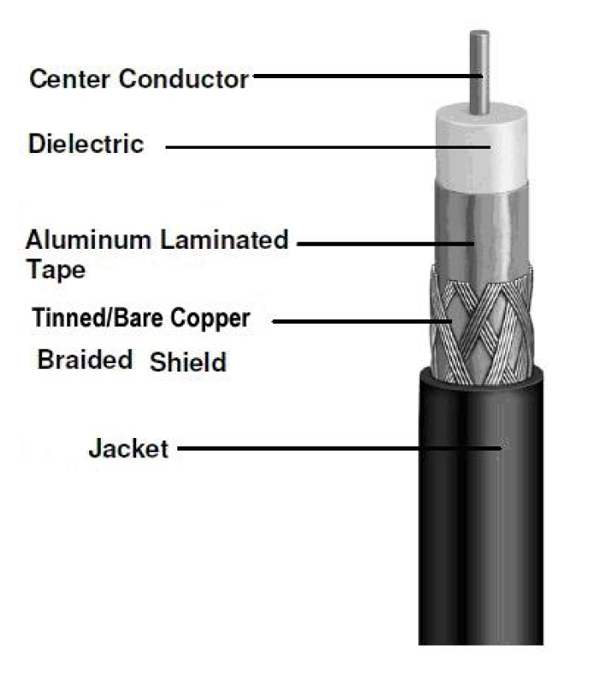

CENTER CONDUCTOR: 0.84 mm BARE COPPER
DIELECTRIC:
SOLID POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 2.95 mm
SHIELD:
1ST SHIELD: LAMINATED ALUMINUM TAPE BONDED TO THE DIELECTRIC
2nd SHIELD: 96*0.12 mm TINNED COPPER BRAID OR COPPER CLAD ALUMINUM BRAID 90% COVERAGE
JACKET:
PVC
NOMINAL DIAMETER OVER JACKET: 4.95 mm
NOMINAL JACKET THICKNESS: 0.73 mm
ELECTRICAL PROPERTIES:
IMPEDANCE: 50.0 +/- 2.0 Ohms
VELOCITY OF PROPAGATION: 66.0% NOMINAL
ATTENUATION @ 68°F (20°C):
@ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5 MHz | 0.8 dB | 2.7 dB |
10 MHz | 1.1 dB | 3.6 dB |
50 MHz | 2.5 dB | 8.2 dB |
100 MHz | 3.8 dB | 12.5dB |
200 MHz | 5.6 dB | 18.4 dB |
400 MHz | 8.4 dB | 27.5 dB |
700 MHz | 11.7 dB | 38.4 dB |
900 MHz | 13.7 dB | 44.9 dB |
1000 MHz | 14.5 dB | 47.5 dB |
BARE COPPER, SPE, BONDED LAMINATED ALUMINUM OR COPPER FOIL,90% TINNED COPPER BRAID OR COPPER CLAD ALUMINUM, PVC
CENTER CONDUCTOR: 0.84 mm BARE COPPER
DIELECTRIC:
SOLID POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 2.95 mm
SHIELD:
1ST SHIELD: LAMINATED ALUMINUM TAPE BONDED TO THE DIELECTRIC
2nd SHIELD: 96*0.12 mm TINNED COPPER BRAID OR COPPER CLAD ALUMINUM BRAID 90% COVERAGE
JACKET:
PVC
NOMINAL DIAMETER OVER JACKET: 4.95 mm
NOMINAL JACKET THICKNESS: 0.73 mm
ELECTRICAL PROPERTIES:
IMPEDANCE: 50.0 +/- 2.0 Ohms
VELOCITY OF PROPAGATION: 66.0% NOMINAL
ATTENUATION @ 68°F (20°C):
@ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5 MHz | 0.8 dB | 2.7 dB |
10 MHz | 1.1 dB | 3.6 dB |
50 MHz | 2.5 dB | 8.2 dB |
100 MHz | 3.8 dB | 12.5dB |
200 MHz | 5.6 dB | 18.4 dB |
400 MHz | 8.4 dB | 27.5 dB |
700 MHz | 11.7 dB | 38.4 dB |
900 MHz | 13.7 dB | 44.9 dB |
1000 MHz | 14.5 dB | 47.5 dB |
