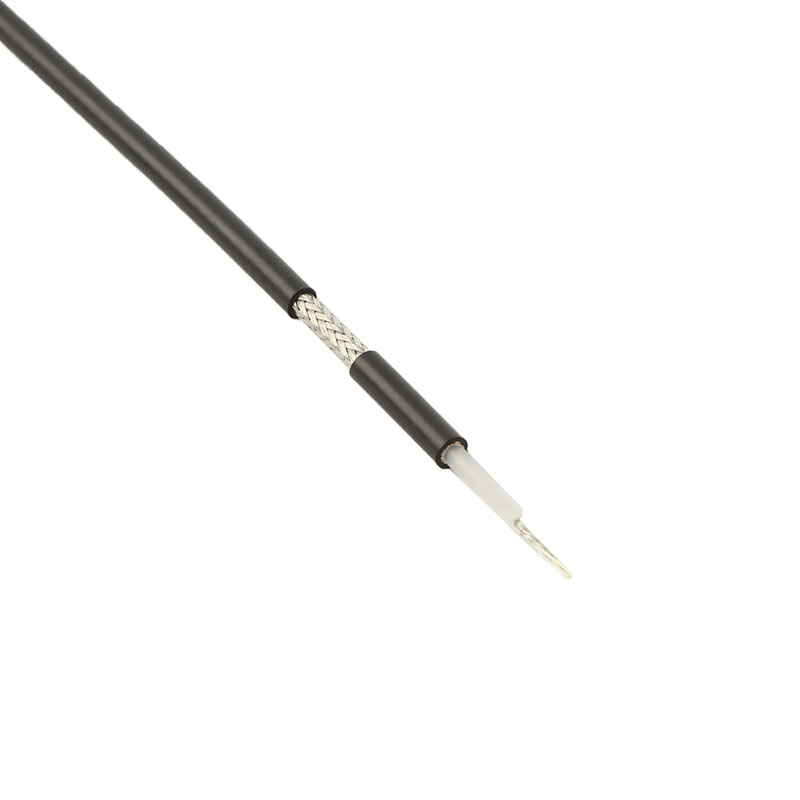

RG58CU 90%
19*0.18mm Tinned Copper,2.95mm Solid PE,Bonded Aluminum Foilor Copper Foi,96*0.12mm Tinned Copper Braid or Copper Clad Aluminum 90%,4.95mm PVC.
TINNED COPPER, SPE, BONDED LAMINATED ALUMINUM OR COPPER FOIL,90% TINNED COPPER BRAID OR COPPER CLAD ALUMINUM, PVC
CENTER CONDUCTOR: 19*0.18 mm TINNED COPPER
DIELECTRIC:
SOLID POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 2.95 mm
SHIELD:
1ST SHIELD: LAMINATED ALUMINUM TAPE BONDED TO THE DIELECTRIC
2nd SHIELD: 96*0.12 mm TINNED COPPER BRAID OR COPPER CLAD ALUMINUM BRAID 90% COVERAGE
JACKET:
PVC
NOMINAL DIAMETER OVER JACKET: 4.95 mm
ELECTRICAL PROPERTIES:
IMPEDANCE: 50.0 +/- 2.0 Ohms
VELOCITY OF PROPAGATION: 66.0% NOMINAL
CAPACITANCE :93.4 pF/M
RETURN LOSS:≥ 20 dB
SCREENING EFFECTIVENESS:≥ 90 dB
ATTENUATION @ 68°F (20°C):
@ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5 MHz | 0.8 dB | 2.6 dB |
10 MHz | 1.1 dB | 3.7 dB |
50 MHz | 2.5 dB | 8.2 dB |
100 MHz | 3.5 dB | 11.6 dB |
200 MHz | 5.0 dB | 16.5 dB |
400 MHz | 7.1 dB | 23.2 dB |
700 MHz | 9.5 dB | 31.0 dB |
900 MHz | 10.7 dB | 35.0 dB |
1000 MHz | 11.2 dB | 36.8 dB |
TINNED COPPER, SPE, BONDED LAMINATED ALUMINUM OR COPPER FOIL,90% TINNED COPPER BRAID OR COPPER CLAD ALUMINUM, PVC
CENTER CONDUCTOR: 19*0.18 mm TINNED COPPER
DIELECTRIC:
SOLID POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 2.95 mm
SHIELD:
1ST SHIELD: LAMINATED ALUMINUM TAPE BONDED TO THE DIELECTRIC
2nd SHIELD: 96*0.12 mm TINNED COPPER BRAID OR COPPER CLAD ALUMINUM BRAID 90% COVERAGE
JACKET:
PVC
NOMINAL DIAMETER OVER JACKET: 4.95 mm
ELECTRICAL PROPERTIES:
IMPEDANCE: 50.0 +/- 2.0 Ohms
VELOCITY OF PROPAGATION: 66.0% NOMINAL
CAPACITANCE :93.4 pF/M
RETURN LOSS:≥ 20 dB
SCREENING EFFECTIVENESS:≥ 90 dB
ATTENUATION @ 68°F (20°C):
@ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5 MHz | 0.8 dB | 2.6 dB |
10 MHz | 1.1 dB | 3.7 dB |
50 MHz | 2.5 dB | 8.2 dB |
100 MHz | 3.5 dB | 11.6 dB |
200 MHz | 5.0 dB | 16.5 dB |
400 MHz | 7.1 dB | 23.2 dB |
700 MHz | 9.5 dB | 31.0 dB |
900 MHz | 10.7 dB | 35.0 dB |
1000 MHz | 11.2 dB | 36.8 dB |
