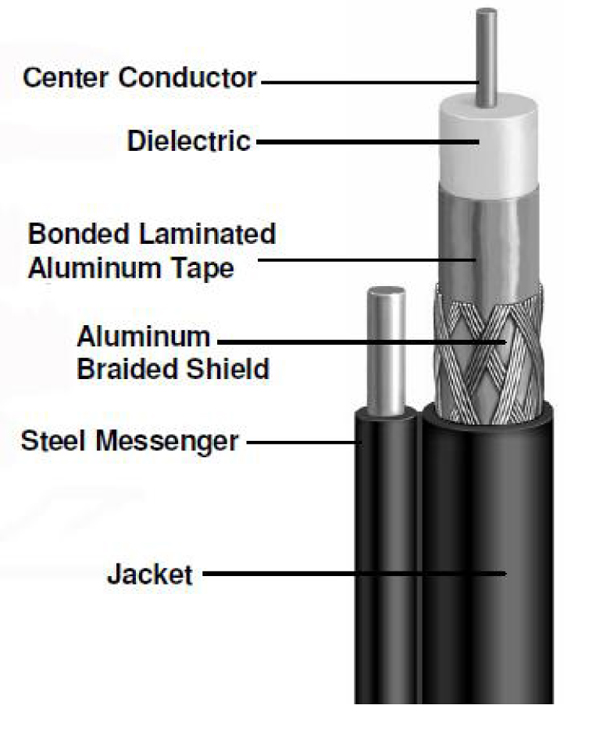

RG59-F5940BVM
0.81mm CCS,3.66mm Foam PE,Bonded Aluminum Foil,48*0.12mm Aluminum Braid 40%,6.10mm PVC, 1.30mm Steel Messenger.
COPPER-CLAD STEEL,FPE, BONDED LAMINATED ALUMINUM TAPE,40%ALUMINUM BRAID , PVC ,STEEL MESSENGER
CENTER CONDUCTOR: 0.81 mm COPPER-CLAD STEEL
DIELECTRIC:
GAS EXPANDED POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 3.66 mm
SHIELD:
1st SHIELD: LAMINATED ALUMINUM TAPE BONDED TO THE DIELECTRIC
2nd SHIELD: 40*0.12 mm ALUMINUM BRAID WIRE 40% COVERAGE
JACKET:
PVC
NOMINAL DIAMETER OVER JACKET: 6.10 mm
NOMINAL JACKET THICKNESS: 0.81 mm
MESSENGER:
NOMINAL DIAMETER OF MESSENGER: 0.051” (1.30 mm)
MINIMUM BREAKING STRENGTH: 180 lbs. (82 kgF)
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 +/- 3.0 Ohms
VELOCITY OF PROPAGATION: 85.0% NOMINAL
ATTENUATION @ 68°F (20°C):
@ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5 MHz | 0.97 dB | 3.20 dB |
55 MHz | 2.05 dB | 6.73 dB |
83 MHz | 2.45 dB | 8.04 dB |
187 MHz | 3.60 dB | 11.87 dB |
211 MHz | 3.80 dB | 12.47 dB |
250 MHz | 4.10 dB | 13.45 dB |
300 MHz | 4.45 dB | 14.60 dB |
350 MHz | 4.80 dB | 15.75 dB |
400 MHz | 5.10 dB | 16.73 dB |
450 MHz | 5.40 dB | 17.72 dB |
500 MHz | 5.70 dB | 18.70 dB |
550 MHz | 5.95 dB | 19.52 dB |
600 MHz | 6.20 dB | 20.34 dB |
750 MHz | 6.97 dB | 22.87 dB |
865 MHz | 7.52 dB | 24.67 dB |
1000 MHz | 8.12 dB | 26.64 dB |
COPPER-CLAD STEEL,FPE, BONDED LAMINATED ALUMINUM TAPE,40%ALUMINUM BRAID , PVC ,STEEL MESSENGER
CENTER CONDUCTOR: 0.81 mm COPPER-CLAD STEEL
DIELECTRIC:
GAS EXPANDED POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 3.66 mm
SHIELD:
1st SHIELD: LAMINATED ALUMINUM TAPE BONDED TO THE DIELECTRIC
2nd SHIELD: 40*0.12 mm ALUMINUM BRAID WIRE 40% COVERAGE
JACKET:
PVC
NOMINAL DIAMETER OVER JACKET: 6.10 mm
NOMINAL JACKET THICKNESS: 0.81 mm
MESSENGER:
NOMINAL DIAMETER OF MESSENGER: 0.051” (1.30 mm)
MINIMUM BREAKING STRENGTH: 180 lbs. (82 kgF)
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 +/- 3.0 Ohms
VELOCITY OF PROPAGATION: 85.0% NOMINAL
ATTENUATION @ 68°F (20°C):
@ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5 MHz | 0.97 dB | 3.20 dB |
55 MHz | 2.05 dB | 6.73 dB |
83 MHz | 2.45 dB | 8.04 dB |
187 MHz | 3.60 dB | 11.87 dB |
211 MHz | 3.80 dB | 12.47 dB |
250 MHz | 4.10 dB | 13.45 dB |
300 MHz | 4.45 dB | 14.60 dB |
350 MHz | 4.80 dB | 15.75 dB |
400 MHz | 5.10 dB | 16.73 dB |
450 MHz | 5.40 dB | 17.72 dB |
500 MHz | 5.70 dB | 18.70 dB |
550 MHz | 5.95 dB | 19.52 dB |
600 MHz | 6.20 dB | 20.34 dB |
750 MHz | 6.97 dB | 22.87 dB |
865 MHz | 7.52 dB | 24.67 dB |
1000 MHz | 8.12 dB | 26.64 dB |
