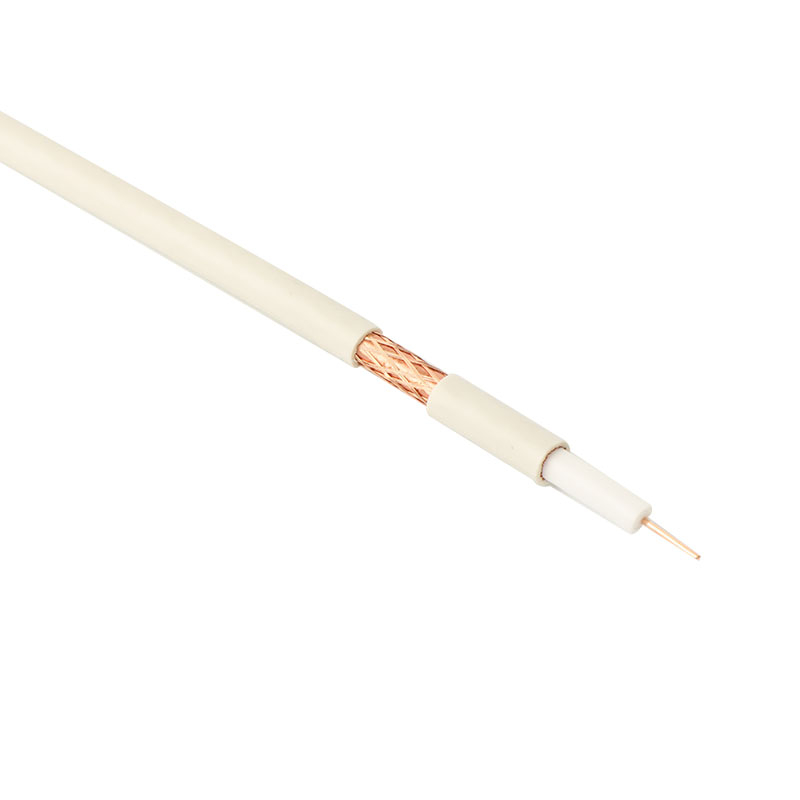

RG59-F59BU
0.58mm CCS,3.70mm Solid PE,112*0.16mm Aluminum Braid or Copper Clad Aluminum 95%, ,6.10mm PVC.

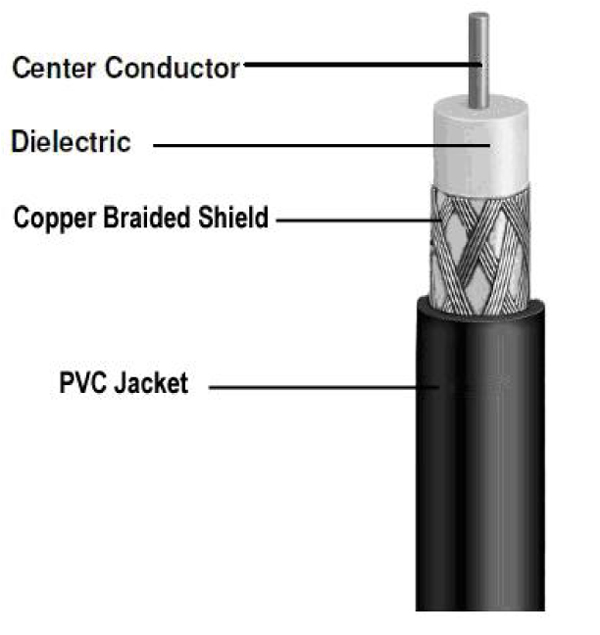

COPPER-CLAD STEEL,SPE,95% BARE COPPER BRAID , PVC
CENTER CONDUCTOR: 0.58 mm COPPER-CLAD STEEL
DIELECTRIC:
SOLIDE POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 3.70 mm
SHIELD:
112*0.16 mm BARE COPPER BRAID WIRE 95% COVERAGE
JACKET:
PVC
NOMINAL DIAMETER OVER JACKET: 6.10 mm
NOMINAL JACKET THICKNESS: 0.81 mm
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 +/- 3.0 Ohms
VELOCITY OF PROPAGATION: 66.0% NOMINAL
CAPACITANCE (pF/m): 67.0
ATTENUATION @ 68°F (20°C):
ATTENUATION @ 68°F (20°C):
@ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
10 MHz | 1.1 dB | 3.6 dB |
50 MHz | 2.6 dB | 8.5 dB |
100 MHz | 3.4 dB | 11.1 dB |
200 MHz | 5.2 dB | 16.9 dB |
400 MHz | 7.2 dB | 23.5 dB |
600 MHz | 9.2 dB | 30.2 dB |
860 MHz | 10.9 dB | 35.6 dB |
1000 MHz | 12.0 dB | 39.5 dB |
