RG59-F5967BVV


  • RG59-F5967BVV

  • RG59-F5967BVV.pdf

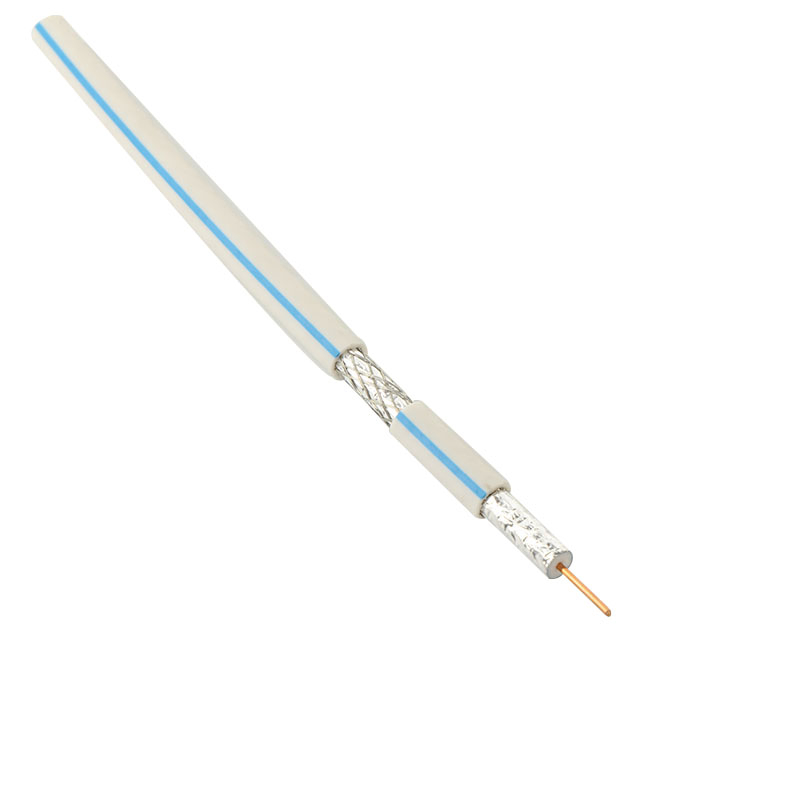

  • 0.81mm CCS,3.66mm Foam PE,Bonded Aluminum Foil,64*0.16mm Aluminum Braid 40%,6.10mm Flame Retardant PVC.

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

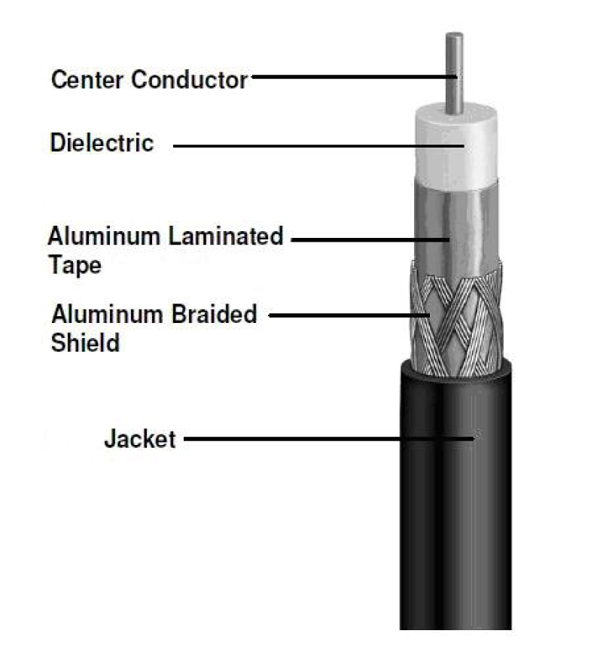

PRODUCT DESCRIPTION:


COPPER-CLAD STEEL,FPE, BONDED LAMINATED ALUMINUM TAPE,67%ALUMINUM BRAID , FLAME RETARDANT PVC


CENTER CONDUCTOR: 0.81 mm COPPER-CLAD STEEL


DIELECTRIC:

GAS EXPANDED POLYETHYLENE

NOMINAL DIAMETER OVER DIELECTRIC: 3.66 mm


SHIELD:

1st SHIELD: LAMINATED ALUMINUM TAPE BONDED TO THE DIELECTRIC

2nd SHIELD: 64*0.16 mm ALUMINUM BRAID WIRE 67% COVERAGE


JACKET:

FLAME RETARDANT PVC

NOMINAL DIAMETER OVER JACKET: 6.10 mm

NOMINAL JACKET THICKNESS: 0.81 mm


ELECTRICAL PROPERTIES:

IMPEDANCE: 75.0 +/- 3.0 Ohms

VELOCITY OF PROPAGATION: 85.0% NOMINAL

RG59-F5940BVV

ATTENUATION @ 68°F (20°C):

@ Frequency MHz

dB/100 ft. (MAX.)

dB/100 meters (MAX.)

5 MHz

0.97 dB

3.20 dB

55 MHz

2.05 dB

6.73 dB

83 MHz

2.45 dB

8.04 dB

187 MHz

3.60 dB

11.87 dB

211 MHz

3.80 dB

12.47 dB

250 MHz

4.10 dB

13.45 dB

300 MHz

4.45 dB

14.60 dB

350 MHz

4.80 dB

15.75 dB

400 MHz

5.10 dB

16.73 dB

450 MHz

5.40 dB

17.72 dB

500 MHz

5.70 dB

18.70 dB

550 MHz

5.95 dB

19.52 dB

600 MHz

6.20 dB

20.34 dB

750 MHz

6.97 dB

22.87 dB

865 MHz

7.52 dB

24.67 dB

1000 MHz

8.12 dB

26.64 dB
