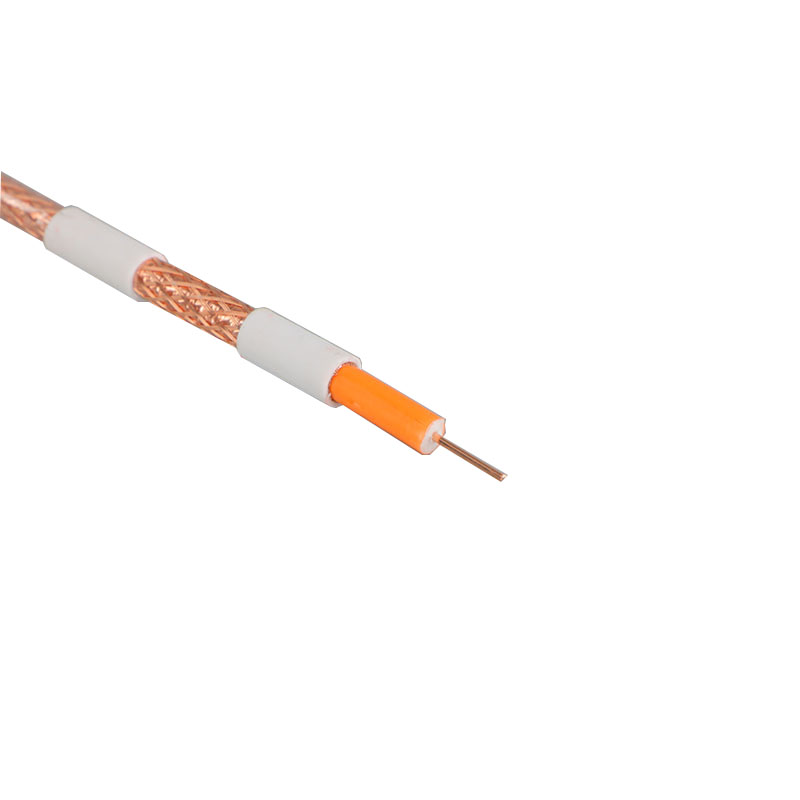

SAT501
0.81mm CCS or Copper,3.50mm Foam PE,Aluminum Foil(Bonded or not Bonded), Aluminum Braid (40-90%),5.10mm PVC.
CENTER CONDUCTOR: 0.81 ± 0.01 MM BARE COPPER/COPPER CLAD STEEL
DIELECTRIC:
GAS EXPANDED POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 3.50 ± 0.05MM
SHIELD:
1st SHIELD: ALUMINUM FOIL
NON-BONDED/BONDED
2nd SHIELD: ALUMINUM BRAID WIRE
40%-90% COVERAGE
JACKET:
PVC JACKET
NOMINAL DIAMETER OVER JACKET: 5. 10 ± 0.05 mm
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 ± 3.0 Ohms
CAPACITANCE:52 ± 2(pF/m)
VELOCITY OF PROPAGATION: 85.0% NOMINAL
RETURN LOSS:
5-1000MHz(dB) ≥ 22
1000-2000MHz(dB) ≥ 20
ATTENUATION @ 68°F (20°C):
@ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5 MHz | 0.64 dB | 2.10 dB |
50 MHz | 1.80 dB | 5.90 dB |
200 MHz | 3.45 dB | 11.30 dB |
470 MHz | 5.30 dB | 17.40 dB |
860 MHz | 7.10 dB | 23.30 dB |
1000 MHz | 8.08 dB | 26.50 dB |
1350 MHz | 9.30 dB | 30.50 dB |
1750 MHz | 10.91 dB | 35.80 dB |
2150MHz | 12.20 dB | 40.00 dB |
