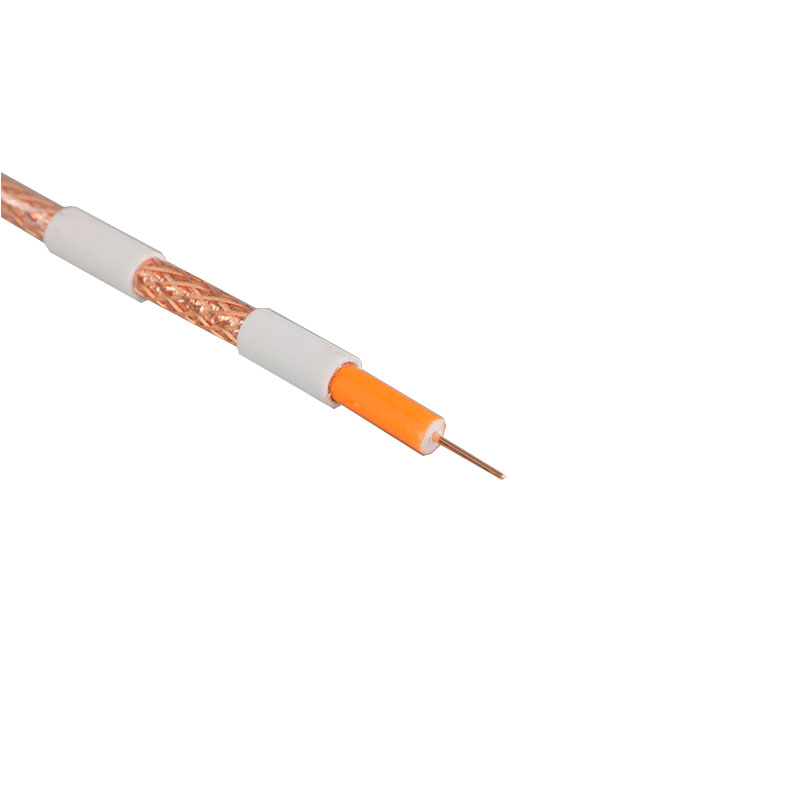

SAT703
1.13mm CCS or Copper,4.80mm Foam PE,Aluminum Foil(Bonded or not Bonded), Aluminum Braid (40-90%),6.80mm PVC.
CENTER CONDUCTOR: 1. 13 ± 0.01 MM BARE COPPER/COPPER CLAD STEEL
DIELECTRIC:
GAS EXPANDED POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 4.80 ± 0.05MM
SHIELD:
1st SHIELD: ALUMINUM FOIL
NON-BONDED/BONDED
2nd SHIELD: ALUMINUM BRAID WIRE
40%-90% COVERAGE
JACKET:
PVC JACKET
NOMINAL DIAMETER OVER JACKET: 6.80 ± 0.05 mm
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 ± 3.0 Ohms
CAPACITANCE:52 ± 2(pF/m)
VELOCITY OF PROPAGATION: 85.0% NOMINAL
RETURN LOSS:
5-1000MHz(dB) ≥ 22
1000-2000MHz(dB) ≥ 20
ATTENUATION @ 68°F (20°C):
@ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5 MHz | 0.52 dB | 1.70 dB |
50 MHz | 1.34 dB | 4.40 dB |
100 MHz | 1.71 dB | 5.60 dB |
200 MHz | 2.47 dB | 8.10 dB |
400 MHz | 3.57 dB | 11.70 dB |
800 MHz | 5.18 dB | 17.00 dB |
862 MHz | 5.40 dB | 17.70 dB |
1000 MHz | 5.76 dB | 18.90 dB |
1350 MHz | 7.26 dB | 23.80 dB |
1750 MHz | 8.05 dB | 26.40 dB |
2150MHz | 9.21 dB | 30.20 dB |
3000MHz | 11.28 dB | 37.00 dB |
CENTER CONDUCTOR: 1. 13 ± 0.01 MM BARE COPPER/COPPER CLAD STEEL
DIELECTRIC:
GAS EXPANDED POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 4.80 ± 0.05MM
SHIELD:
1st SHIELD: ALUMINUM FOIL
NON-BONDED/BONDED
2nd SHIELD: ALUMINUM BRAID WIRE
40%-90% COVERAGE
JACKET:
PVC JACKET
NOMINAL DIAMETER OVER JACKET: 6.80 ± 0.05 mm
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 ± 3.0 Ohms
CAPACITANCE:52 ± 2(pF/m)
VELOCITY OF PROPAGATION: 85.0% NOMINAL
RETURN LOSS:
5-1000MHz(dB) ≥ 22
1000-2000MHz(dB) ≥ 20
ATTENUATION @ 68°F (20°C):
@ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5 MHz | 0.52 dB | 1.70 dB |
50 MHz | 1.34 dB | 4.40 dB |
100 MHz | 1.71 dB | 5.60 dB |
200 MHz | 2.47 dB | 8.10 dB |
400 MHz | 3.57 dB | 11.70 dB |
800 MHz | 5.18 dB | 17.00 dB |
862 MHz | 5.40 dB | 17.70 dB |
1000 MHz | 5.76 dB | 18.90 dB |
1350 MHz | 7.26 dB | 23.80 dB |
1750 MHz | 8.05 dB | 26.40 dB |
2150MHz | 9.21 dB | 30.20 dB |
3000MHz | 11.28 dB | 37.00 dB |
