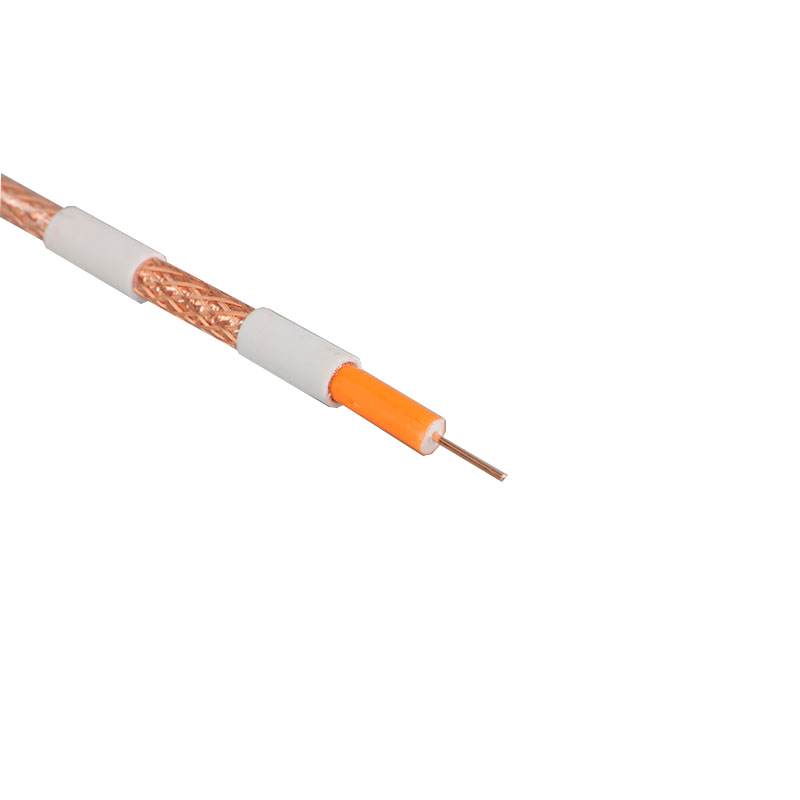

SAT602

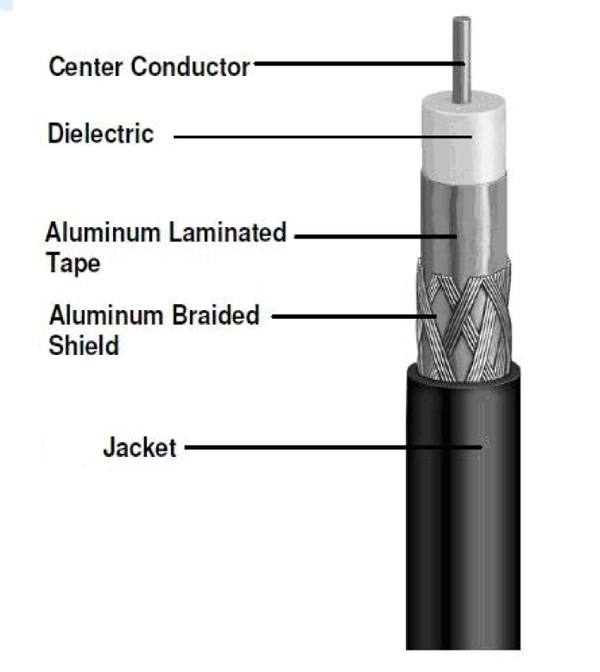

1.02mm CCS or Copper,4.60mm Foam PE,Aluminum Foil(Bonded or not Bonded), Aluminum Braid (40-90%),6.80mm PVC.
CENTER CONDUCTOR: 1.02 ± 0.01 MM BARE COPPER/COPPER CLAD STEEL
DIELECTRIC:
GAS EXPANDED POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 4.60 ± 0.05MM
SHIELD:
1st SHIELD: ALUMINUM FOIL
NON-BONDED/BONDED
2nd SHIELD: ALUMINUM BRAID WIRE
40%-90% COVERAGE
JACKET:
PVC JACKET
NOMINAL DIAMETER OVER JACKET: 6.80 ± 0.05 mm
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 ± 3.0 Ohms
CAPACITANCE:52 ± 2(pF/m)
VELOCITY OF PROPAGATION: 85.0% NOMINAL
RETURN LOSS:
5-1000MHz(dB) ≥ 22
1000-2000MHz(dB) ≥ 20
ATTENUATION @ 68°F (20°C):
@ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5 MHz | 0.58 dB | 1.90 dB |
50 MHz | 1.50 dB | 4.90 dB |
100 MHz | 2.16 dB | 7.10 dB |
200 MHz | 2.74 dB | 9.00 dB |
400 MHz | 3.96 dB | 13.00 dB |
800 MHz | 5.70 dB | 18.70 dB |
1000 MHz | 6.40 dB | 21.00 dB |
1350 MHz | 7.77 dB | 25.50 dB |
1750 MHz | 8.69 dB | 28.50 dB |
2150MHz | 9.82 dB | 32.20 dB |
2400 MHz | 10.67 dB | 35.00 dB |
3000MHz | 12.37 dB | 40.60 dB |
CENTER CONDUCTOR: 1.02 ± 0.01 MM BARE COPPER/COPPER CLAD STEEL
DIELECTRIC:
GAS EXPANDED POLYETHYLENE
NOMINAL DIAMETER OVER DIELECTRIC: 4.60 ± 0.05MM
SHIELD:
1st SHIELD: ALUMINUM FOIL
NON-BONDED/BONDED
2nd SHIELD: ALUMINUM BRAID WIRE
40%-90% COVERAGE
JACKET:
PVC JACKET
NOMINAL DIAMETER OVER JACKET: 6.80 ± 0.05 mm
ELECTRICAL PROPERTIES:
IMPEDANCE: 75.0 ± 3.0 Ohms
CAPACITANCE:52 ± 2(pF/m)
VELOCITY OF PROPAGATION: 85.0% NOMINAL
RETURN LOSS:
5-1000MHz(dB) ≥ 22
1000-2000MHz(dB) ≥ 20
ATTENUATION @ 68°F (20°C):
@ Frequency MHz | dB/100 ft. (MAX.) | dB/100 meters (MAX.) |
5 MHz | 0.58 dB | 1.90 dB |
50 MHz | 1.50 dB | 4.90 dB |
100 MHz | 2.16 dB | 7.10 dB |
200 MHz | 2.74 dB | 9.00 dB |
400 MHz | 3.96 dB | 13.00 dB |
800 MHz | 5.70 dB | 18.70 dB |
1000 MHz | 6.40 dB | 21.00 dB |
1350 MHz | 7.77 dB | 25.50 dB |
1750 MHz | 8.69 dB | 28.50 dB |
2150MHz | 9.82 dB | 32.20 dB |
2400 MHz | 10.67 dB | 35.00 dB |
3000MHz | 12.37 dB | 40.60 dB |
