GYFTC8Y

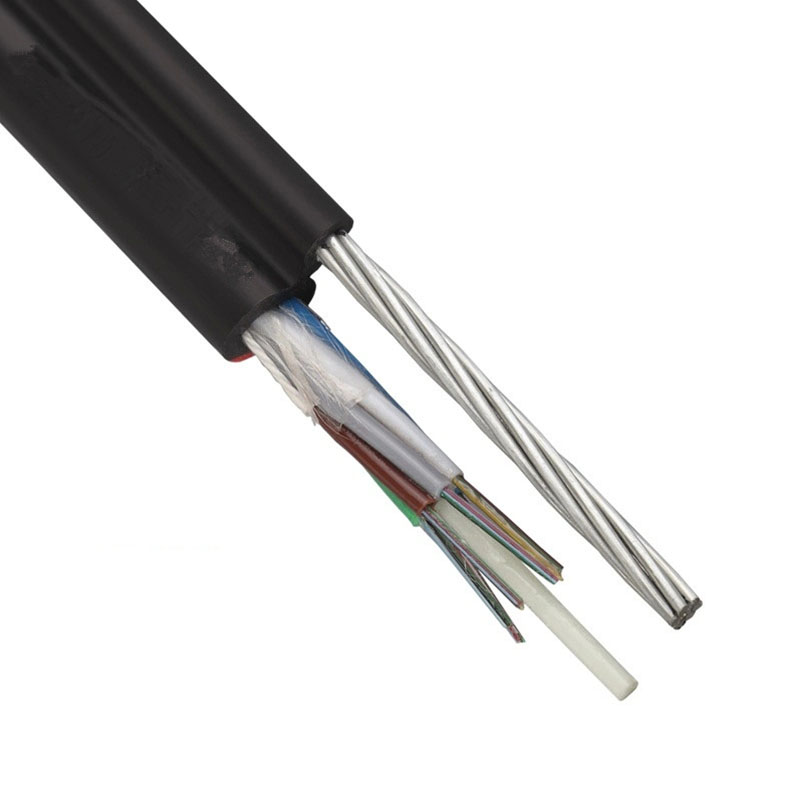

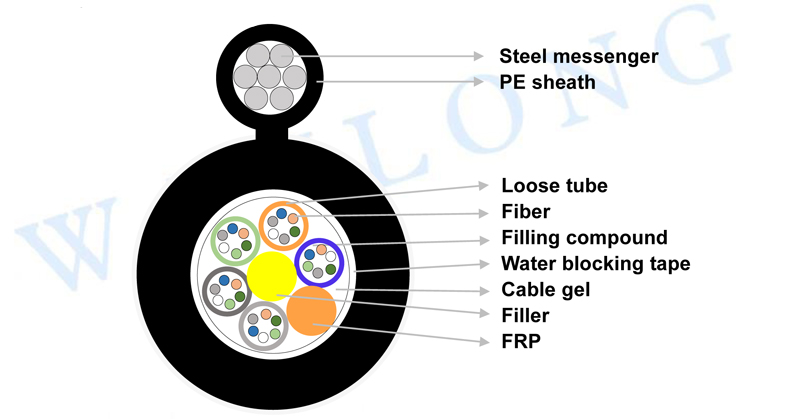

FIG-8, Multi Tube, FRP Strength Member, Water Blocking Tape, PE Sheath, Stranded Steel Messenger.
Intermediate for strengthening of non-metallic FRP, PBT fiber-circular casing around package, the cable core filled ointment, with water blocking outsourcing, PE layer of protection, and with the strand (or wire) parallel placed at the same time squeeze 8 fonts into a cable sheathing.
Water blocking the whole section (except for the portion of the hanging cable),fiber optic cable with excellent mechanical and environmental performance.
To ensure long-term reliability of fiber optic cable.
8 chevron Self-supporting structural design, easy to install installation, reducing installation costs.
Low loss, low dispersion, all nonmetallic structure of lightning excellent performance.
Bending Radius | Static 10xD Dynamic20xD |
Storage/Operating Temperature | -40℃~+60℃ |
Cable Type increased by 2 fibers |
GYFTC8Y 4-30 Cores |
GYFTC8Y 4-36 Cores |
GYFTC8Y 32-60 Cores |
GYFTC8Y 32-72 Cores |
GYFTC8Y 74-96 Cores |
GYFTC8Y 32-60 Cores |
GYFTC8Y 32-72 Cores |
GYFTC8Y 74-96 Cores |
Fiber Count | 4-30 |
4-36 |
32-60 |
32-72 |
74-96 |
98-120 |
122-144 |
146-216 |
Tubes+Filler | 5 |
6 |
5 |
6 |
8 |
10 |
12 |
6/12 |
Max No. of fibers in Tube |
6 |
6 |
12 |
12 |
12 |
12 |
12 |
6/12 |
Cable Diameter(mm) |
9.6- |
10.2- |
10.6- |
11- |
12.5- |
13.8- |
15.4- |
16- |
Cable Weight(kg/km) |
135- |
145- |
150- |
155- |
170- |
190- |
250- |
250- |
Tensile Strength Long/Short Term(N) |
2000/5000 |
2000/5000 |
2000/5000 |
2000/5000 |
2000/5000 |
2000/5000 |
2000/5000 |
2000/5000 |
Crush Resistance Long/Short Term(N/100mm) |
300/1000 |
300/1000 |
300/1000 |
300/1000 |
300/1000 |
300/1000 |
300/1000 |
300/1000 |
