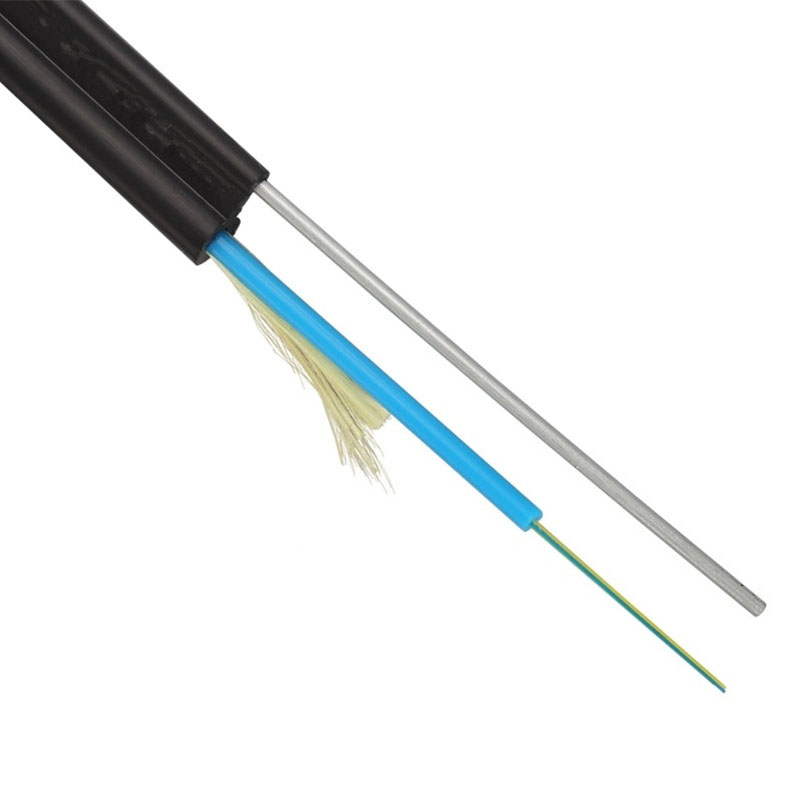

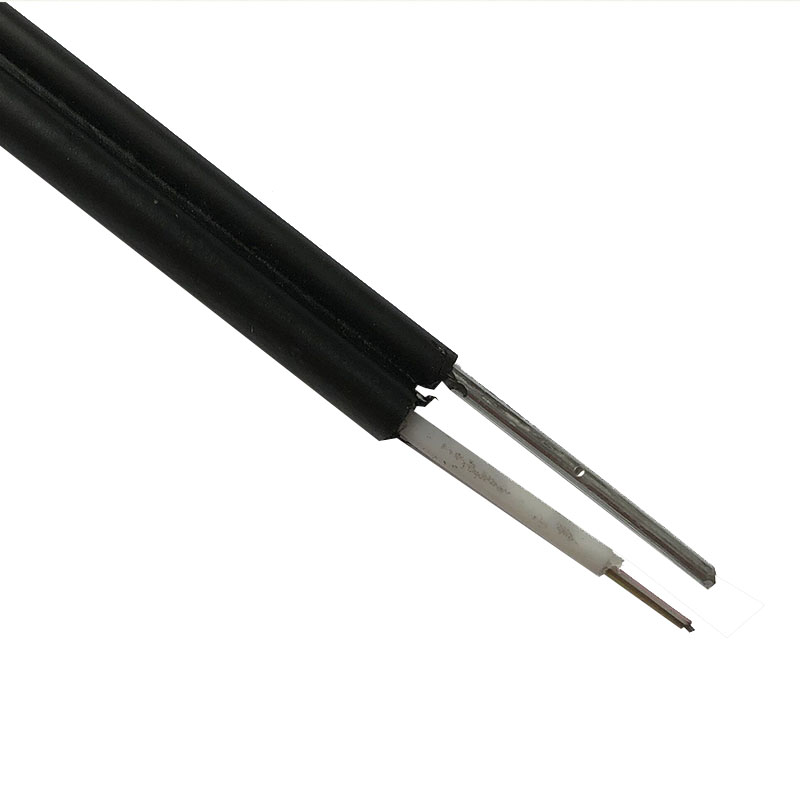

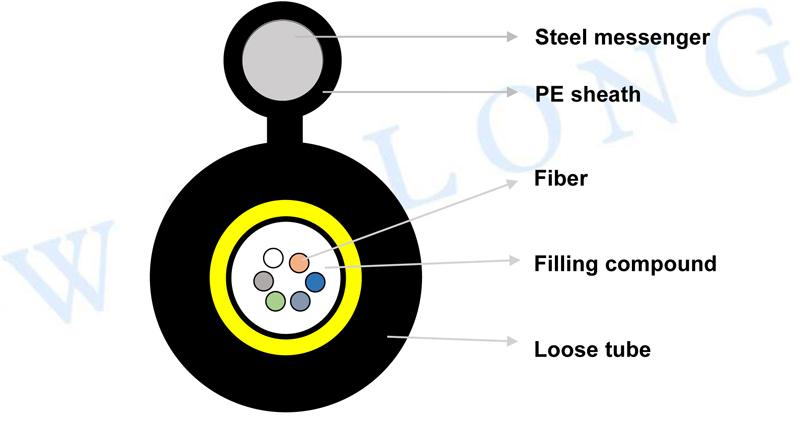

PBT for the middle-casing, and 12(or 11 or 10 or 9 or8) high-strength steel (or sets of plastic steel wire) strands in uniform-casing around, PE jacket, and with Strand (or wire) parallel 8 fonts placed at the same time squeezing into cable sheathing.
Reasonable design and precise control over the loose-tube fiber in the remainder of a long, fiber optic cable with excellent performance and temperature tensile properties.
No need another release strand when set up , the rate of increase of 3-4 times.
Core cable filled ointment to ensure that the vertical water blocking effect.
Bending Radius | Static 10xD Dynamic20xD |
Storage/Operating Temperature | -40℃~+60℃ |
Cable Type increased by 2 fibers |
GYXTC8Y 2-12Cores |
Fiber Count | 2-12 |
Steel(mm) | 1.5 |
Loose Tube Size | 2.0/2.2 |
Cable Diameter(mm) | 5.0- |
Cable Weight(kg/km) | 40- |
Tensile Strength Long/Short Term(N) | 400/1000 |
Crush Resistance Long/Short Term(N/100mm) | 1000/2000 |
PBT for the middle-casing, and 12(or 11 or 10 or 9 or8) high-strength steel (or sets of plastic steel wire) strands in uniform-casing around, PE jacket, and with Strand (or wire) parallel 8 fonts placed at the same time squeezing into cable sheathing.
Reasonable design and precise control over the loose-tube fiber in the remainder of a long, fiber optic cable with excellent performance and temperature tensile properties.
No need another release strand when set up , the rate of increase of 3-4 times.
Core cable filled ointment to ensure that the vertical water blocking effect.
Bending Radius | Static 10xD Dynamic20xD |
Storage/Operating Temperature | -40℃~+60℃ |
Cable Type increased by 2 fibers |
GYXTC8Y 2-12Cores |
Fiber Count | 2-12 |
Steel(mm) | 1.5 |
Loose Tube Size | 2.0/2.2 |
Cable Diameter(mm) | 5.0- |
Cable Weight(kg/km) | 40- |
Tensile Strength Long/Short Term(N) | 400/1000 |
Crush Resistance Long/Short Term(N/100mm) | 1000/2000 |
