GYTC8Y



  • GYTC8Y

  • GYTC8Y.pdf

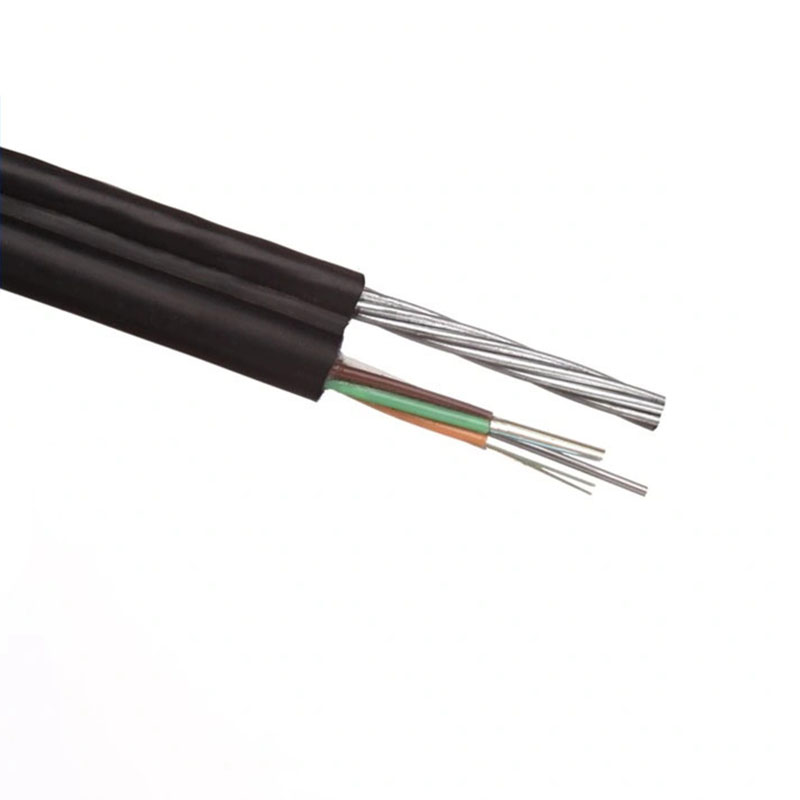

  • FIG-8, Multi Tube,Water Blocking Tape, PE Sheath, Stranded Steel Messenger.

Availability:
Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

PRODUCT DESCRIPTION:

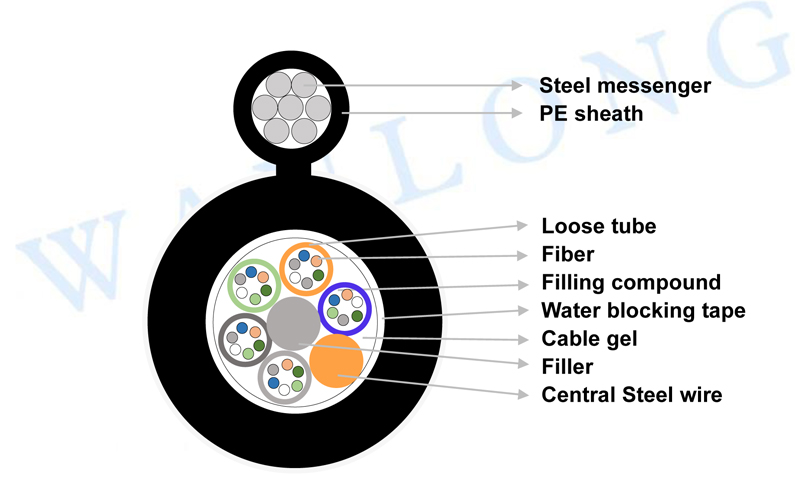

Strengthening of the Centre for wire, or fiber loose-tube PBT may have filled rope around the outside package, the cable core filled ointment, with water blocking vertical packages, PE layer of protection, and with the Strand (or wire) parallel placed at the same time squeezing into 8 fonts jacket cable.

GYTC8Y


CHARACTERISTICS:

  • Core cable filled ointment to ensure that the vertical water blocking effect.

  • Loose pieces of casing around the central of the SZ-cutter.

  • No need another release strand when set up , the rate of increase of 3-4 times.


Bending Radius

Static 10xD Dynamic20xD

Storage/Operating Temperature

-40℃~+60℃

Cable Type increased by 2 fibers

GYTC8S

4-30

Cores

GYTC8S

4-36

Cores

GYTC8S

32-60

Cores

GYTC8S

32-72

Cores

GYTC8S

74-96

Cores

GYTC8S

32-60

Cores

GYTC8S

32-72

Cores

GYTC8S

74-96

Cores

Fiber Count

4-30

4-36

32-60

32-72

74-96

98-120

122-144

146-216

Tubes+Filler

5

6

5

6

8

10

12

6/12

Max No. of fibers in Tube

6

6

12

12

12

12

12

6/12

Cable Diameter(mm)

9.6-

10.2-

10.6-

11-

12.5-

13.8-

15.4-

16-

Cable Weight(kg/km)

140-

150-

155-

160-

180-

220-

270-

280-

Tensile Strength Long/Short Term(N)

3000/7000

3000/7000

3000/7000

3000/7000

3000/7000

3000/7000

3000/7000

3000/7000

Crush Resistance Long/Short Term(N/100mm)

300/1000

300/1000

300/1000

300/1000

300/1000

300/1000

300/1000

300/1000


download GYTC8Y.pdf
