GYXTC8S

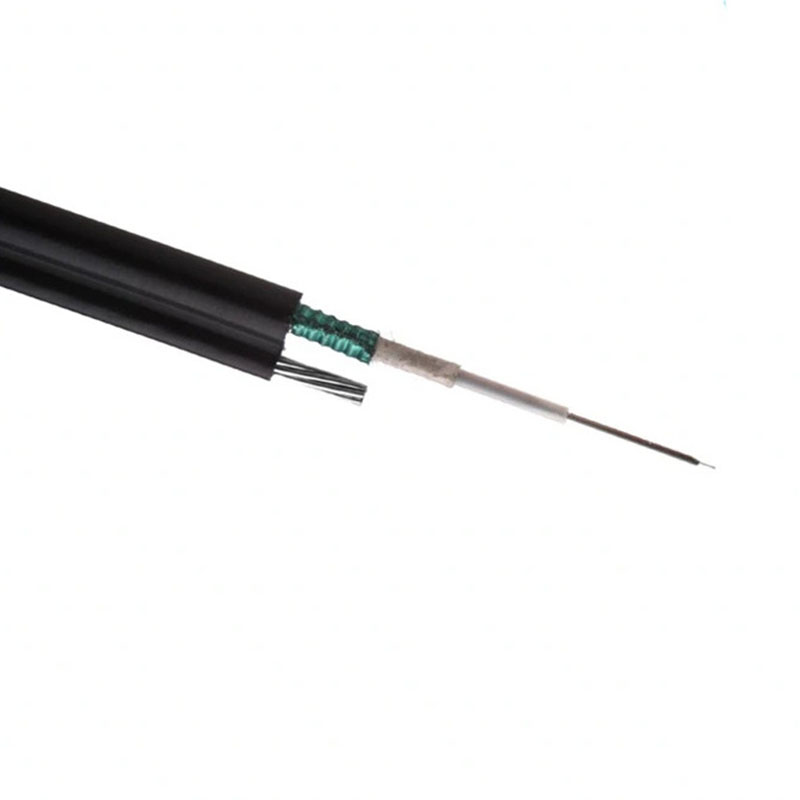

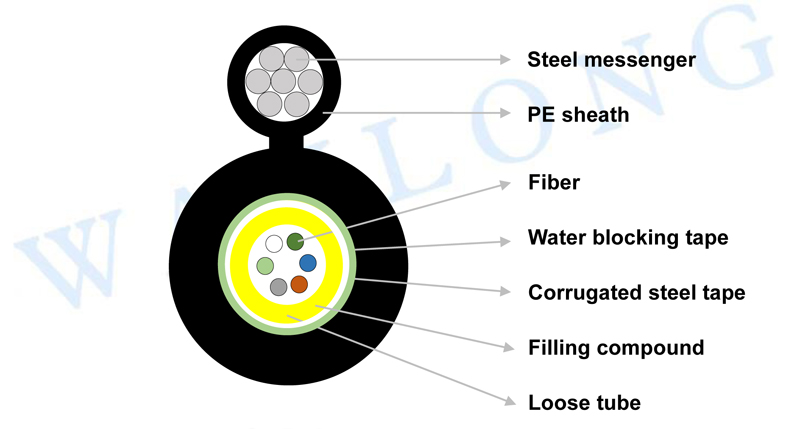

FIG-8, Central Loose Tube, Corrugated Steel Tape, PE Sheath, Stranded Steel Messenger.
Center beam tube fiber optic cable, with a PBT- casing, with water blocking outsourcing, steel-plastic composite armor with wrinkles, PE jacket, and with the Strand (or wire) parallel placed at the same time squeezing into 8 fonts jacket cable.
Core cable filled ointment to ensure that the vertical water blocking effect.
No need another release strand when set up , the rate of increase of 3-4 times.
Bending Radius | Static 10xD Dynamic20xD |
Storage/Operating Temperature | -40℃~+60℃ |
Cable Type increased by 2 fibers |
GYXTC8S 2-12 Cores |
Fiber Count | 2-12 |
Loose Tube Size | 2.2 |
Cable Diameter(mm) | 7.6- |
Cable Weight(kg/km) | 100- |
Tensile Strength Long/Short Term(N) | 1000/3000 |
Crush Resistance Long/Short Term(N/100mm) |
300/1000 |
Center beam tube fiber optic cable, with a PBT- casing, with water blocking outsourcing, steel-plastic composite armor with wrinkles, PE jacket, and with the Strand (or wire) parallel placed at the same time squeezing into 8 fonts jacket cable.
Core cable filled ointment to ensure that the vertical water blocking effect.
No need another release strand when set up , the rate of increase of 3-4 times.
Bending Radius | Static 10xD Dynamic20xD |
Storage/Operating Temperature | -40℃~+60℃ |
Cable Type increased by 2 fibers |
GYXTC8S 2-12 Cores |
Fiber Count | 2-12 |
Loose Tube Size | 2.2 |
Cable Diameter(mm) | 7.6- |
Cable Weight(kg/km) | 100- |
Tensile Strength Long/Short Term(N) | 1000/3000 |
Crush Resistance Long/Short Term(N/100mm) |
300/1000 |
