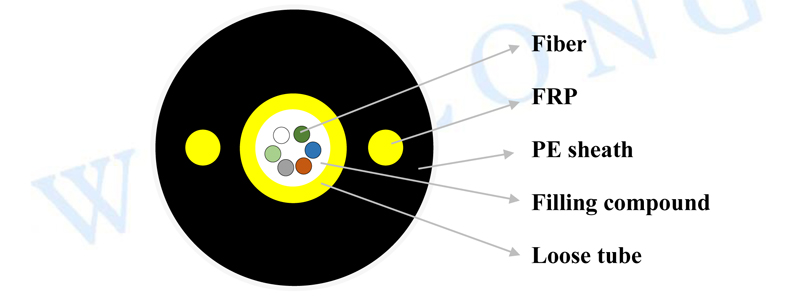

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene (PE) sheath.
Good mechanical and temperature performance.
High strength loose tube that is hydrolysis resistant.
Special tube filling compound ensure a critical protection of fiber, Specially designed compact structure is good at preventing loose tubes from shrinking.
Two parallel FRP ensure tensile strength.
PE sheath protects cable from ultraviolet radiation.
Small diameter, light weight and friendly installation.
Bending Radius | Static 10xD Dynamic20xD |
Storage/Operating Temperature | -40℃~+60℃ |
Cable Type increased by 2 fibers | GYFXY-2-12Cores |
Fiber Count | 2-12 |
Cable Diameter(mm) | 7.6- |
Cable Weight(kg/km) | 40- |
Tensile Strength Long/Short Term(N) | 400/1000 |
Crush Resistance Long/Short Term(N/100mm) | 300/1000 |
The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene (PE) sheath.
Good mechanical and temperature performance.
High strength loose tube that is hydrolysis resistant.
Special tube filling compound ensure a critical protection of fiber, Specially designed compact structure is good at preventing loose tubes from shrinking.
Two parallel FRP ensure tensile strength.
PE sheath protects cable from ultraviolet radiation.
Small diameter, light weight and friendly installation.
Bending Radius | Static 10xD Dynamic20xD |
Storage/Operating Temperature | -40℃~+60℃ |
Cable Type increased by 2 fibers | GYFXY-2-12Cores |
Fiber Count | 2-12 |
Cable Diameter(mm) | 7.6- |
Cable Weight(kg/km) | 40- |
Tensile Strength Long/Short Term(N) | 400/1000 |
Crush Resistance Long/Short Term(N/100mm) | 300/1000 |
