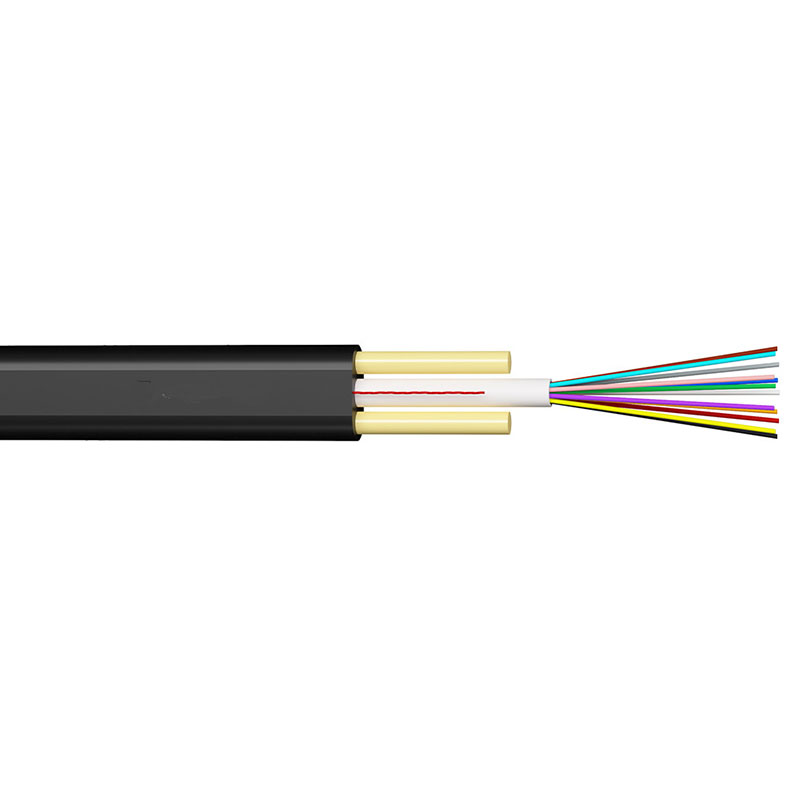

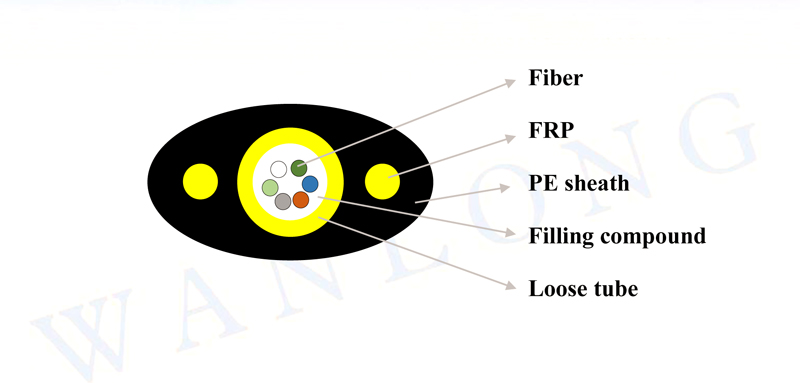

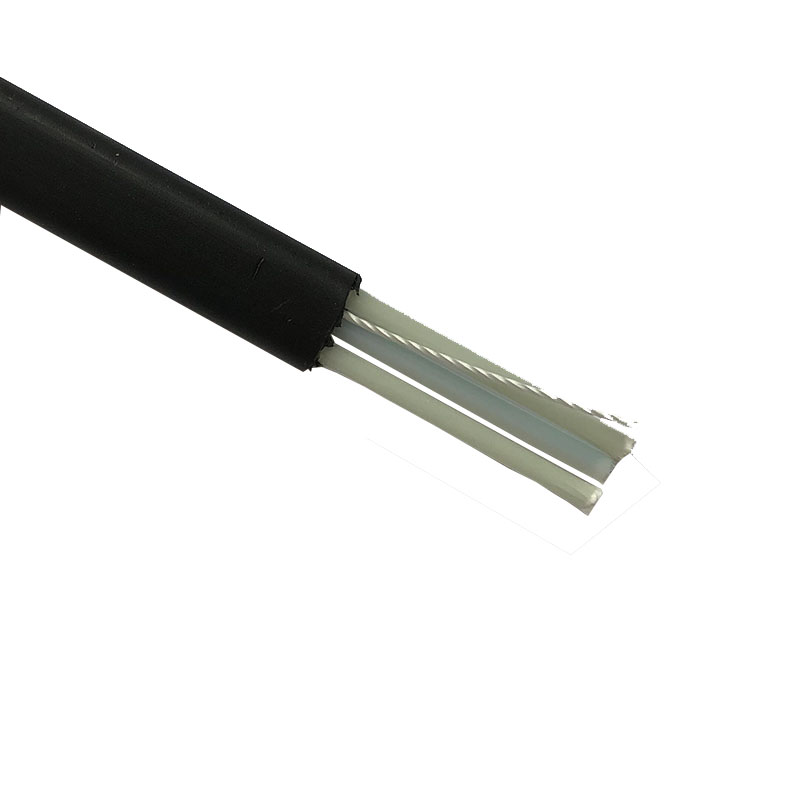

SMALL OVAL CABLE GYXTPY

COLOR OF FIBER

BLUE, ORANGE, GREEN, BROWN, GREY, WHITE

RED, BALCK, YELLOW, VIOLET, PINK, AQUA

TYPE OF FIBRE

SM G652 D

LOOSE TUBE DIAMETER

2.0 mm PBT Nominal

STRENGTH MEMBER

2*1.4mm FRP

RIPCORD

1

OUTER SHEATH COLOR

BLACK

OUTER SHEATH MATERIAL

PE

OUTER SHEATH THICKNESS

1.0 mm nominal

CABLE DIMENSIONS-HEIGHT

-WIDTH

6.2+ 0.3 mm

3.5+ 0.3 mm

CABLE WEIGHT

14 + 5Kg/Km

PRINTING ON CABLE

AS PER CUSTOMER REQUIREMENT

STANDARD LENGTH

4 + 5% KMS

ATTENUATION @ 1310 nm

dB/km

< 0.36

@ 1550 nm

< 0.22

CHROMATIC DISPERSION 1285-1330 nm

ps/nm.km

< 3.5

At 1550 nm

< 18.0

At 1625 nm

nm

< 22.0

ZERO DISPERSION WAVELENGTH

ps/nm2.km

1302-1322

ZERO DISPERSION SLOPE

nm

< 0.092

CUT OFF WAVELENGTH

ps/root km

< 1260

POLARISARION MODE DISPERSION

um

<   0.2

MODE FIELD DIAMETER At 1310 nm

um

9.2 + 0.4

At 15500 nm

10.3 + 0.5

CORE- CLAD CONCENTRICITY ERROR

%

< 1.0

CLADDING NON CIRCULARITY

< 1.2

CLADDING DIAMETER

um

125 + 10

COATING DIAMETER

um

250 + 15

COATING AND CLADDING CONCENTRICITY ERROR

< 12.5

MECHANICAL & ENVIRONMENTAL PROPERTIES

A. MAX. INSTALLATION TENSION: 1000 Newton

B. MAX. OPERATING TENSION: 500 Newton

C. CRUSH RESISTANCE: 1000 Newton /10cm

D. MAX. OPERATING/ INSTALLATION TEMPERATURE: - 40 °C to + 70 °C
