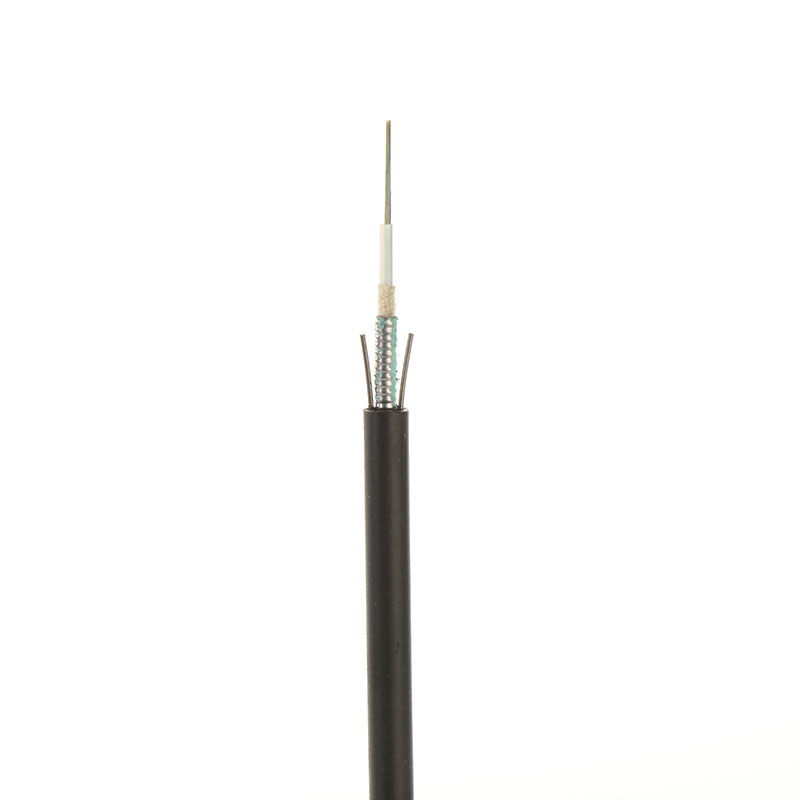

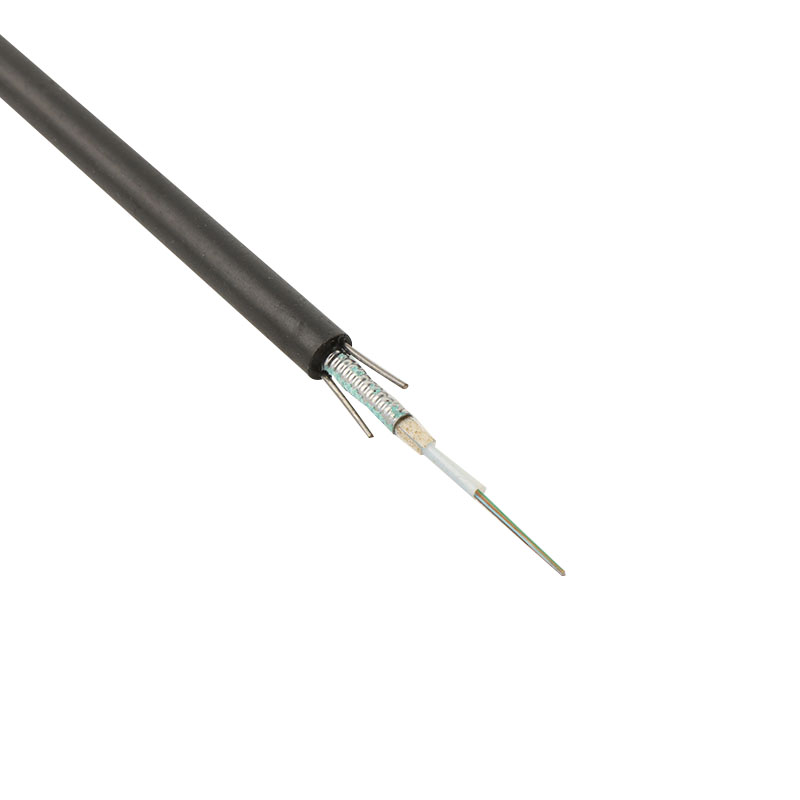

The fibers, either of single-more or multimode type, are positioned in a loose tube made of a high modulus plastic. The tube is filled with a water- resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Accurate fiber excess length ensures good mechanical and temperature performance.
High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a critical protection of fiber.
Specially designed compact structure is good at preventing loose tubes from shrinking.
Corrugated steel tape enhances the cable crush-resistance. Impact-resistance and moisture-proof.
Two parallel steel wires ensure tensile strength, PE sheath protects cable from ultraviolet radiation.
Small diameter, light weight and installation friendliness long delivery length.
Bending Radius | Static 10xD Dynamic20xD |
Storage/Operating Temperature | -40℃~+60℃ |
Cable Type increased by 2 fibers | GYXTW-2-8 Cores | GYXTW-10-12Cores |
Fiber Count | 2-8 | 10-12 |
Steel Wire | 0.9/1.0 | 0.9/1.0 |
Loose Tube Size | 2.1 | 2.2 |
Cable Diameter(mm) | 8- | 8- |
Cable Weight(kg/km) | 70- | 70- |
Tensile Strength Long/Short Term(N) | 600/1500 | 600/1500 |
Crush Resistance Long/Short Term(N/100mm) | 300/1000 | 300/1000 |
