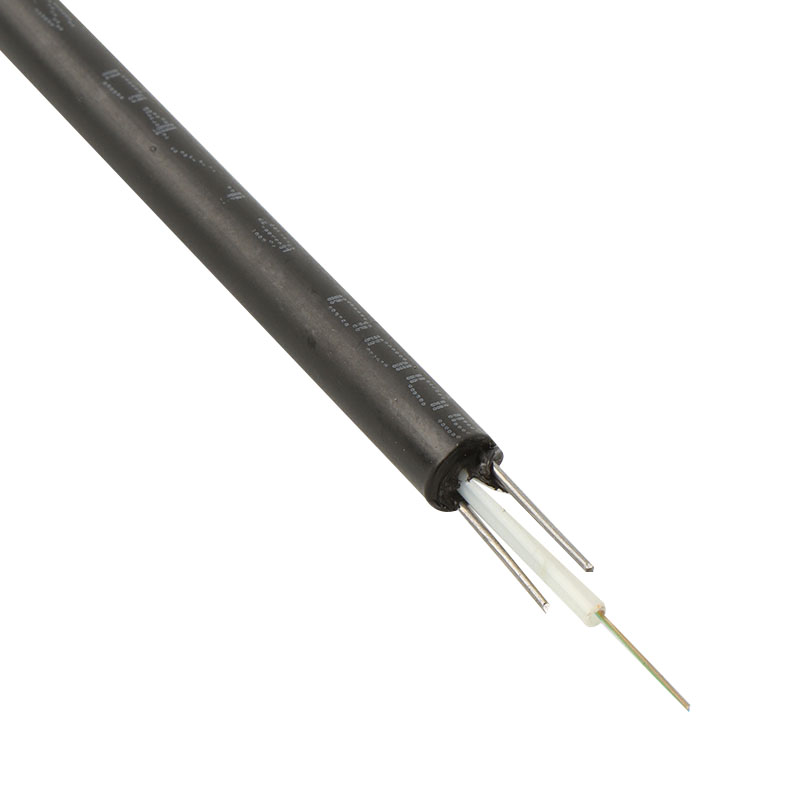

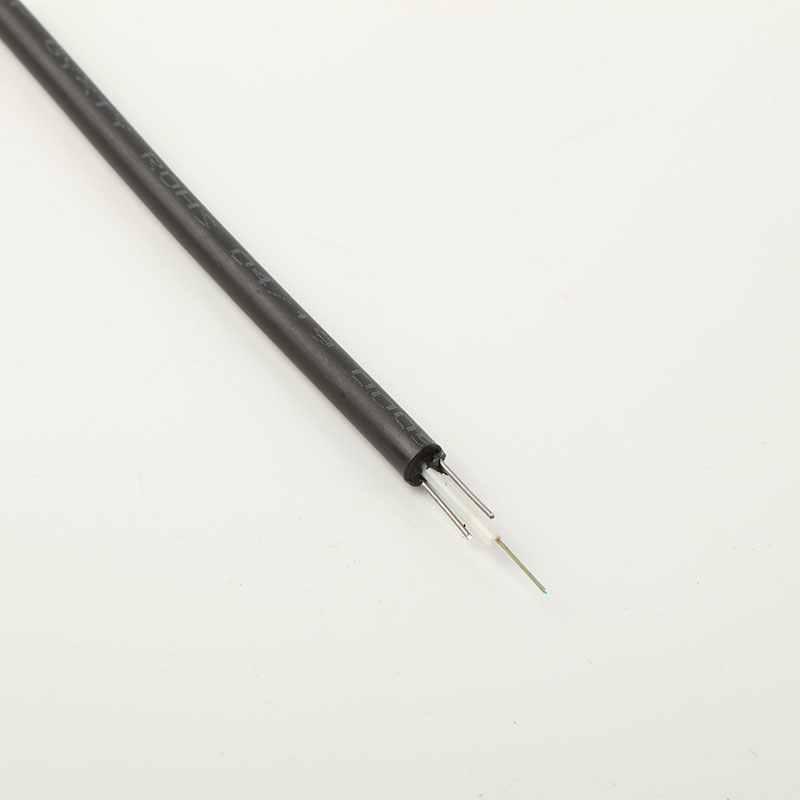

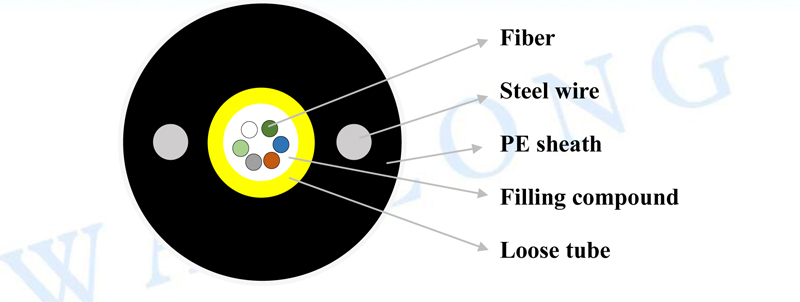

Jelly filled and fiber contained central loose tube with two parallel steel wires. Protecting by outer sheath wrapped vertically.
Reasonable design and precise control over the loose-tube fiber in the remainder of a long fiber optic cable with excellent performance and temperature tensile properties.
High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a critical protection of fiber.
Specially designed compact structure is good at preventing loose tubes from shrinking.
Crush resistance and flexibility.
Two parallel steel wires ensure tensile strength; PE sheath protects cable from ultraviolet radiation.
Small diameter, light weight and installation friendliness long delivery length.
Wire-side pressure Armored excellent performance and a bullet-proof capability
Bending Radius | Static 10xD Dynamic20xD |
Storage/Operating Temperature | -40℃~+60℃ |
Cable Type increased by 2 fibers | GYXY-2-8 Cores | GYXY-10-12Cores |
Fiber Count | 2-8 | 10-12 |
Steel Wire | 0.9/1.0 | 0.9/1.0 |
Loose Tube Size | 2.1 | 2.2 |
Cable Diameter(mm) | 7.2- | 7.2- |
Cable Weight(kg/km) | 50- | 50- |
Tensile Strength Long/Short Term(N) | 600/1500 | 600/1500 |
Crush Resistance Long/Short Term(N/100mm) | 300/1000 | 300/1000 |
